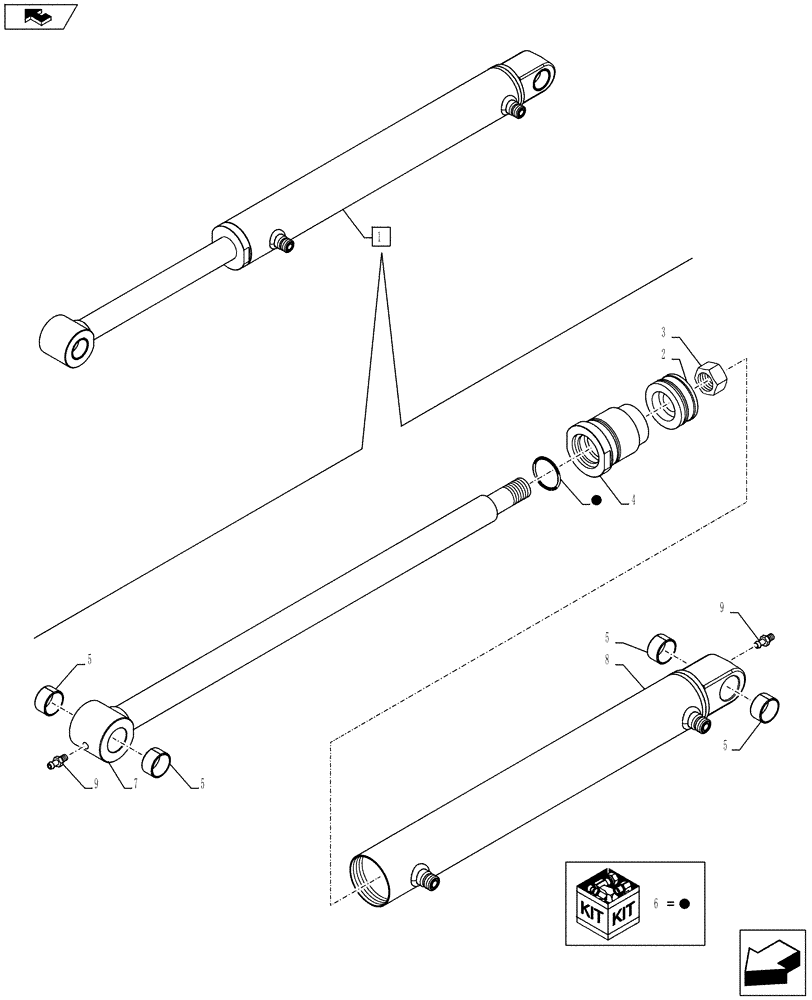

Запчасти Case IH L630 (35.723.AA[01]) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

84406337

BUCKET CYLINDER

Assy, Incl 2 - 5, 7 - 9

1шт.

2

84406340

PISTON

Hydraulic Cylinder

1шт.

3

84406341

NUT

Piston Rod

1шт.

4

84406342

HEAD

1шт.

5

84406343

BUSHING

Cylinder

4шт.

6

84406344

SEAL KIT

Services 1

1шт.

7

84406339

ROD

Piston

1шт.

8

NSS

NOT SOLD SEPARAT

Cylinder Housing, Incl in 1

1шт.

9

87588865

FITTING,M6 x 1 x 12mm L

2шт.
