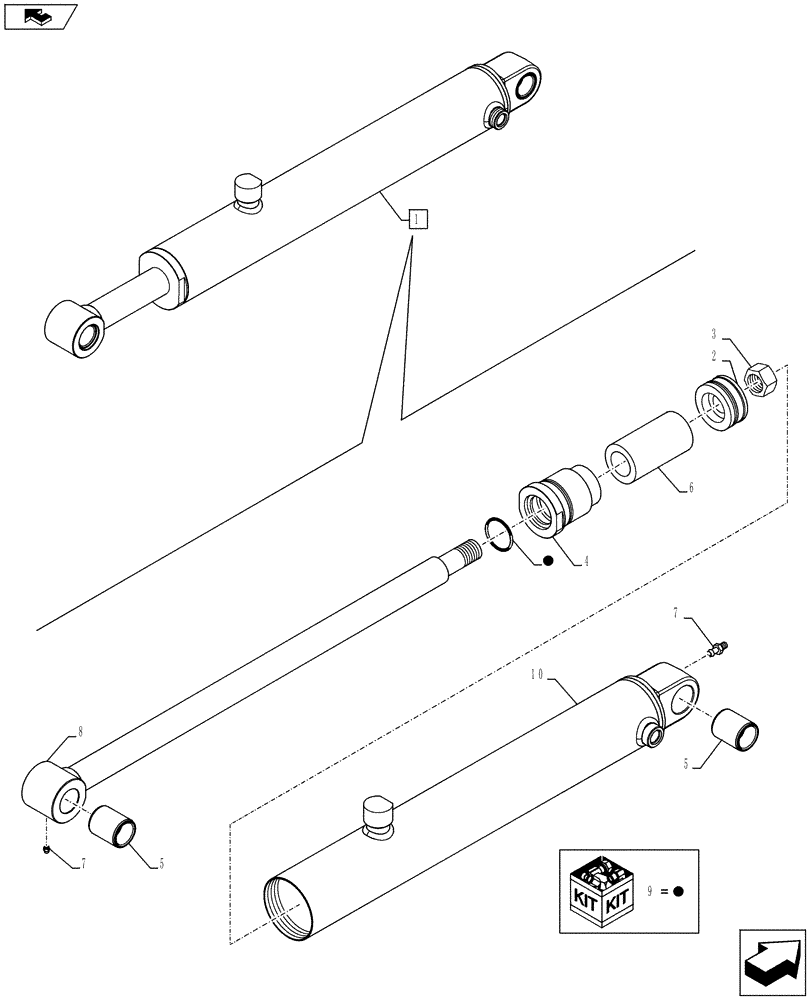

Запчасти Case IH L620 (35.701.CB) - BOOM LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

84406289

LIFT CYLINDER

ASSY, LH, Contains Ref. 2-10

1шт.

1

84406290

LIFT CYLINDER

ASSY, RH, Contains Ref. 2-10

1шт.

2

84406292

PISTON

1шт.

3

84406293

NUT

1шт.

4

84406295

HEAD

1шт.

5

84406296

BUSHING

2шт.

6

84406191

SPACER

1шт.

7

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1

2шт.

8

84406291

ROD

1шт.

9

84406297

SEAL KIT

ASSY

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.
