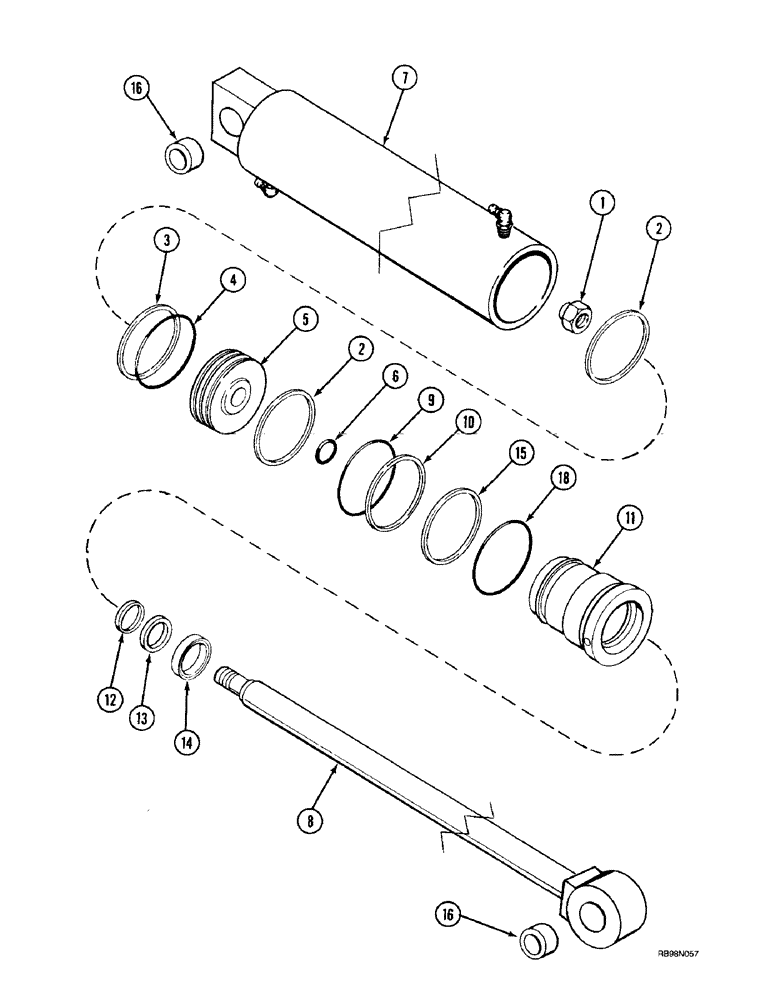

Запчасти Case IH L600 (8-50) - CYLINDER ASSY - LIFT (L600), 76 MM (3 IN) ID X 698.5 MM (27.5 IN) STRK (08) - HYDRAULICS

338104A1

CYLINDER

ASSY., 76 ID x 698.5 mm strk Consists Of : 1-18

2шт.

1

NSS

NOT SOLD SEPARAT

NUT lock

1шт.

2

NSS

NOT SOLD SEPARAT

RING wear

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

348470A1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

338122A1

TUBE

BODY

1шт.

8

338140A1

ROD

PISTON

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

RING backup

1шт.

11

360029A1

HEAD ASSY.

CYLINDER

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER

1шт.

15

NSS

NOT SOLD SEPARAT

RING wear

1шт.

16

318872A1

BUSHING

4шт.

17

NSS

NOT SOLD SEPARAT

PLUG

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

353123A1

SEAL KIT

SEALS Consists Of : 1-4, 6, 9, 10, 12-15 and 18

1шт.
