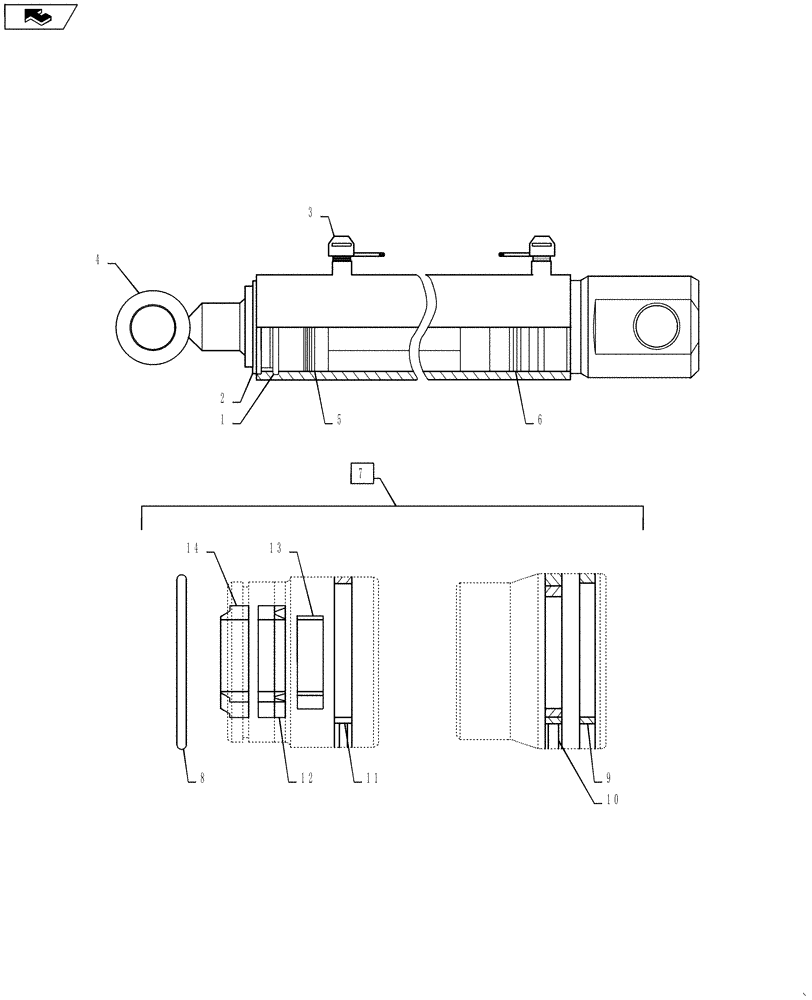

Запчасти Case IH L580 (35.100.02[08]) - CYLINDER LDR12717810 (35) - HYDRAULIC SYSTEMS

1

LDR5016667

RING

Retaining

1шт.

2

LDR5016620

RING

Retaining

1шт.

3

NSS

NOT SOLD SEPARAT

SHIPPING PLUG

2шт.

4

LDR12714813

ROD

Piston

1шт.

5

LDR12708011

GLAND

1шт.

6

LDR12708012

PISTON

1шт.

7

LDR5033706

SEAL KIT

Inc. 8-14

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING, 72.62 x 3.53

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE RING, 80/75 x 5.5

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON SEAL, 80/64.5 x 6.3

1шт.

11

NSS

NOT SOLD SEPARAT

COVER SEAL, 80 x 73.6 x 6.4

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL, 40/50 x 10

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE RING, 40/45 x 9.7

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER, 40/50 x 7/10

1шт.
