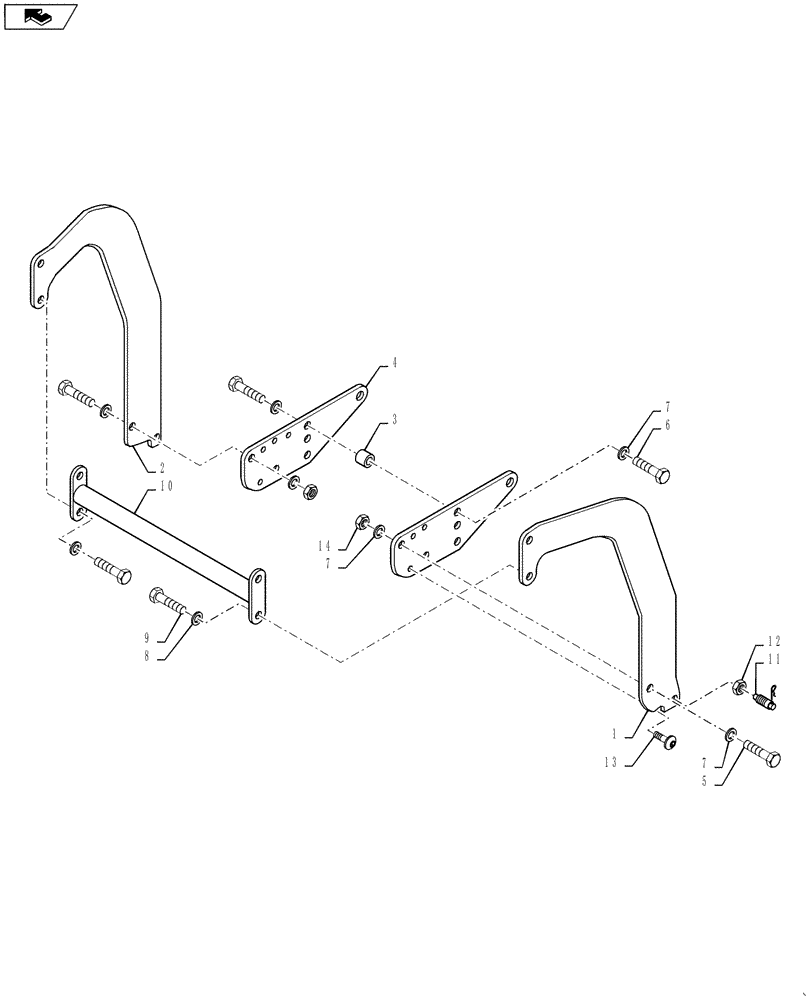

Запчасти Case IH L580 (82.100.10) - GRILLE GUARD SET, MAXXUM - 715824276 (82) - FRONT LOADER & BUCKET

1

LDR10411693

GUARD

Grill, LH

1шт.

In case of welded pin breaking, Order P/N LDR5016994, and P/N LDR5011922

1шт.

2

LDR10411694

GUARD

Grill, RH

1шт.

In case of welded pin breaking, Order P/N LDR5016994, and P/N LDR5011922

1шт.

3

LDR1109053

SPACER

Sleeve, 25mm

4шт.

4

LDR10412790

BRACKET

2шт.

5

LDR5002215

BOLT,M20 x 60mm, Cl 10.9

M6S M20 x 60 (10.9)

2шт.

6

LDR5002203

BOLT

M6S M20 x 70 (8.8)

6шт.

7

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

BRB 21 x 36 x 3

10шт.

8

LDR5013105

WASHER

BRB 30 x 17 x 3

4шт.

9

LDR5002170

SCREW

M6S M16 x 30 (8.8)

4шт.

10

LDR10411696

BAR

Cross Bar

1шт.

11

LDR5016994

PIN

Locking

2шт.

12

LDR5011922

NUT

2шт.

13

LDR5004940

SCREW

MC6S M16 x 20 (8.8)

2шт.

14

LDR5011559

LOCK NUT,M20

M20 Loc-King

2шт.
