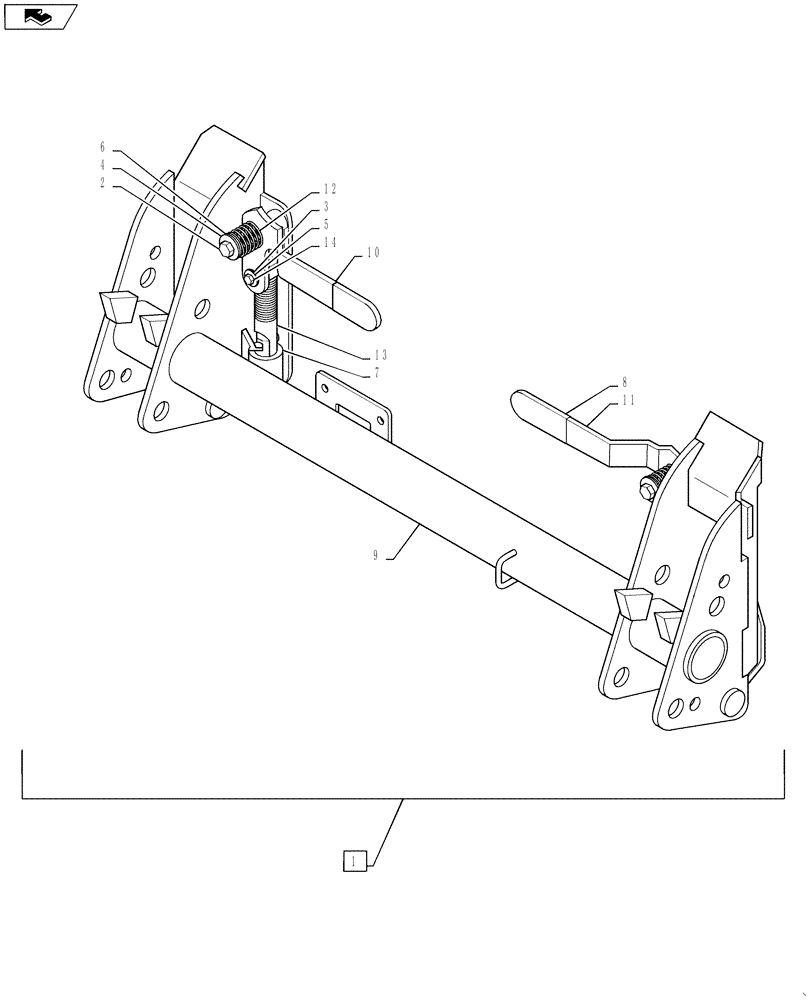

Запчасти Case IH L580 (39.110.01[02]) - TOOL CARRIER - SKIDSTEER (39) - FRAMES AND BALLASTING

1

LDR5221300C

CARRIER

Tool, Inc. 2-14

1шт.

2

LDR5002103

SCREW,M12 x 35mm L

M6S M12 x 35

2шт.

3

LDR5013404

WASHER

8.1 x 14.8 x 2

2шт.

4

LDR5013408

WASHER

12.2 x 21.1 x 2.5

2шт.

5

LDR5013916

WASHER

8.8 x 24 x 2

2шт.

6

LDR5013924

WASHER

13 x 36 x 6

2шт.

7

LDR5021901

LUBE NIPPLE

LUBRICATOR

2шт.

8

LDR5022144

HANDLE

Cover

2шт.

9

LDR5221371C

CARRIER

Tool

1шт.

10

LDR5221533

HANDLE

Left Hand

1шт.

11

LDR5221534

HANDLE

Right Hand

1шт.

12

LDR5221539

SPRING

2шт.

13

LDR5221580

PIN

2шт.

14

LDR5002051

SCREW,M6S

M6S 8 x 20

2шт.
