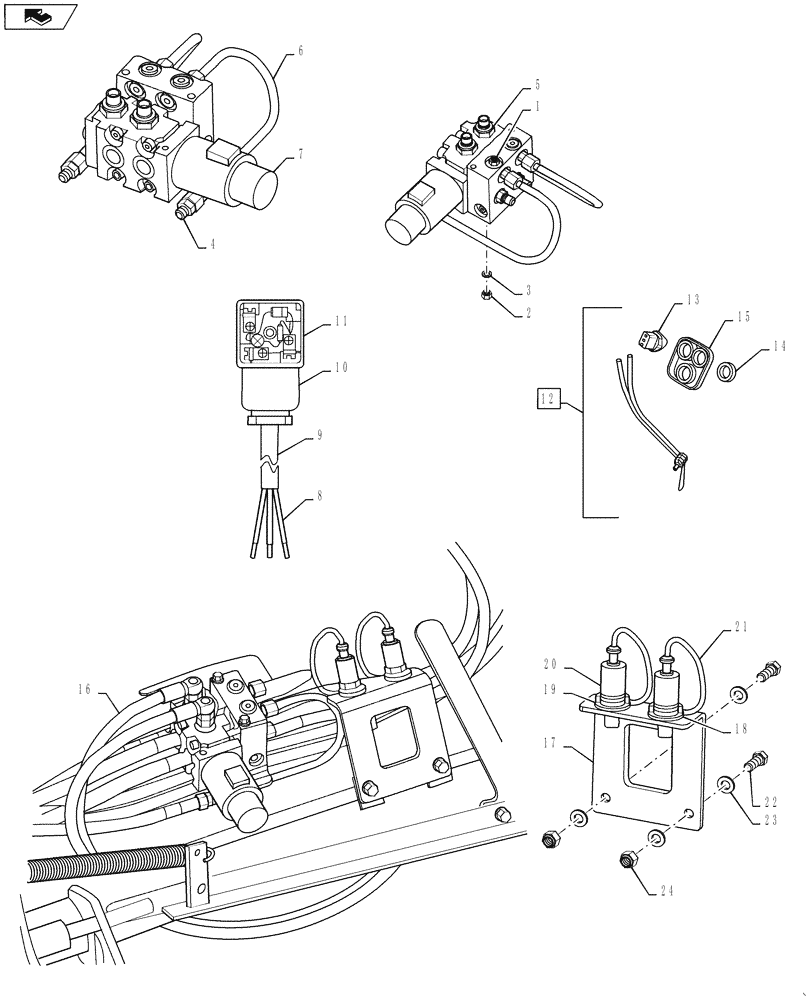

Запчасти Case IH L580 (35.850.02[04]) - 3RD FUNCTION - DIRECT CONTROLLED - NSL (35) - HYDRAULIC SYSTEMS

1

LDR5002978

SCREW

M6S 8 x 129

2шт.

2

LDR5011553

NUT,M8

M6M M8 Loc-King

1шт.

3

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4 x 16 x 1.5

1шт.

4

LDR5028109

ADAPTER

JIC 9/16"

2шт.

5

LDR5028151

ADAPTER

UNF 3/4"

2шт.

6

LDR5221381

TUBE

2шт.

7

LDR5221389

SERVICE KIT

Valve

1шт.

8

LDR5024205

CABLE

3rd Function

1шт.

9

LDR5102152

CABLE

3rd Function, L=3700

1шт.

10

LDR5024376

TERMINAL CONNECTOR

1шт.

11

LDR5024379

ELEC CONNECTOR

1шт.

12

LDR5021084

INSERT

Inc. 13-15

1шт.

13

LDR5021095

SWITCH

1шт.

14

LDR5021096

BOOT

1шт.

15

LDR5021094

INSERT

1шт.

16

LDR1103117

FLEXIBLE HOSE

3/8"

2шт.

17

LDR5221946

BRACKET

1шт.

18

LDR5022157

WASHER

Red

1шт.

19

LDR5022159

WASHER

Blue

1шт.

20

LDR5044940

QUICK MALE COUPLING,3/8" BSP

BSP 3/8"

2шт.

21

LDR5044129

CAP

2шт.

22

LDR5002077

SCREW

M6S 10 x 30

3шт.

23

LDR5013102

WASHER,10mm ID x 18mm OD x 2mm Thk

BRB 10 x 18 x 2

4шт.

24

LDR5011554

NUT,M10

Loc-King M10

2шт.
