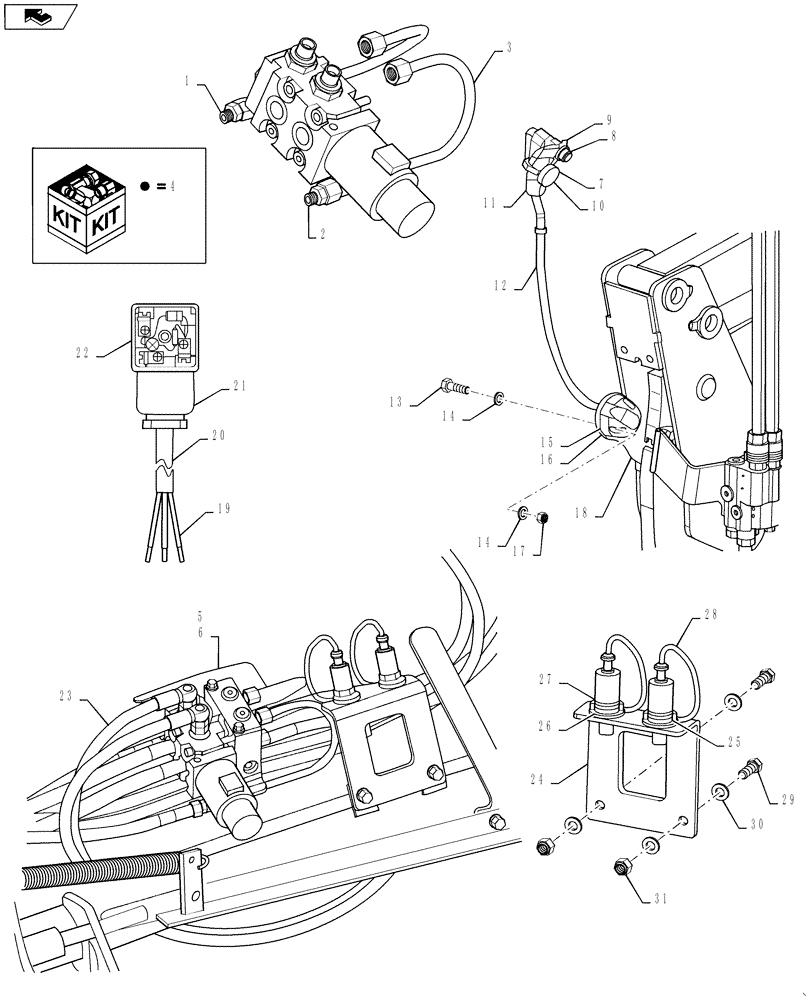

Запчасти Case IH L580 (35.850.02[01]) - 3RD FUNCTION - WIRE CONTROLLED - MSL (35) - HYDRAULIC SYSTEMS

1

LDR5028109

ADAPTER

JIC 9/16"

2шт.

2

LDR5028151

ADAPTER

UNF 3/4"

1шт.

3

LDR5221381

TUBE

1шт.

4

LDR5221387

SERVICE KIT

Valve

2шт.

5

LDR5039034

O-RING

2шт.

6

LDR5004056

SCREW

M8 x 65

4шт.

7

LDR5021082

INSERT

Switch, Inc. 8-11

1шт.

8

LDR5024366

BOOT

1шт.

9

LDR5024365

SWITCH

1шт.

10

LDR5021093

PLUG

1шт.

11

LDR5021098

INSERT

1шт.

12

LDR313476

WIRE HARNESS

3rd Function

1шт.

13

LDR5004914

SCREW

M5 x 40

3шт.

14

LDR5013112

WASHER

5.3 x 10 x 1.5

6шт.

15

LDR5102039

COVER

1шт.

16

LDR5024378

ELEC CONNECTOR

1шт.

17

LDR5011051

NUT

M5

3шт.

18

LDR5201142

BRACKET

1шт.

19

LDR5102152

CABLE

L=3700

1шт.

20

LDR5024205

CABLE

3rd Function

1шт.

21

LDR5024376

TERMINAL CONNECTOR

1шт.

22

LDR5024379

ELEC CONNECTOR

1шт.

23

LDR1103117

FLEXIBLE HOSE

3/8"

2шт.

24

LDR5221946

BRACKET

1шт.

25

LDR5022157

WASHER

Red

1шт.

26

LDR5022159

WASHER

Blue

1шт.

27

LDR5044940

QUICK MALE COUPLING,3/8" BSP

BSP 3/8"

2шт.

28

LDR5044129

CAP

2шт.

29

LDR5002077

SCREW

M6S 10 x 30

2шт.

30

LDR5013102

WASHER,10mm ID x 18mm OD x 2mm Thk

BRB 10 x 18 x 2

4шт.

31

LDR5011554

NUT,M10

Loc-King M10

2шт.
