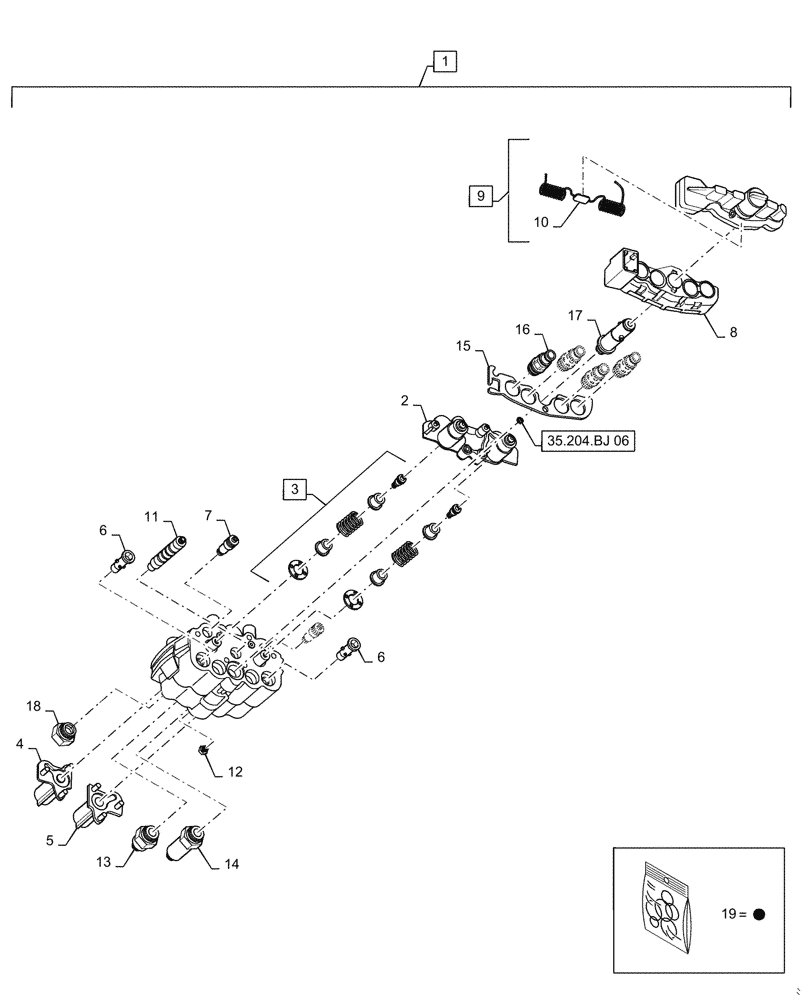

Запчасти Case IH L580 (35.204.BJ[05]) - VAR - 713640006 - ERGODRIVE LCS OPEN CENTER - FARMALL 110A, 120A, 125A, 140A (35) - HYDRAULIC SYSTEMS

1

LDR10570156

CONTROL VALVE

Electronic Controlled Valve

1шт.

2

LDR10570080

CAP

1шт.

3

LDR10570079

VALVE

Spool Control

1шт.

4

LDR10570082

CAP

LH

2шт.

5

LDR10570081

CAP

RH

1шт.

6

LDR10570071

COUPLING

Check Valve

2шт.

7

LDR10570069

COUPLING

Check Valve

2шт.

8

LDR10570096

CAP

W/Marking

1шт.

9

LDR5034232

DUST CAP

1шт.

10

LDR10570094

SECURING STRAP

Strap, Incl 9

1шт.

11

LDR10570181

SPOOL

1шт.

12

LDR5028093

COUPLING

Plug

1шт.

13

LDR5028086

COUPLING

1шт.

14

LDR5028087

ADAPTER

Long Coupling

1шт.

15

LDR10570088

COVER PLATE

1шт.

16

LDR5044956

QUICK MALE COUPLING

1шт.

17

LDR10570078

COUPLING

Adapter

1шт.

18

LDR5028092

ADAPTER

BSP 3/4" - JIC 9/16

1шт.

19

LDR5045426

O-RING

Services 16

1шт.
