(35.204.07) - LDR10550415 CONTROL VALVE - COMPONENTS

Запчасти Case IH L580 (35.204.07) - LDR10550415 CONTROL VALVE - COMPONENTS (35) - HYDRAULIC SYSTEMS

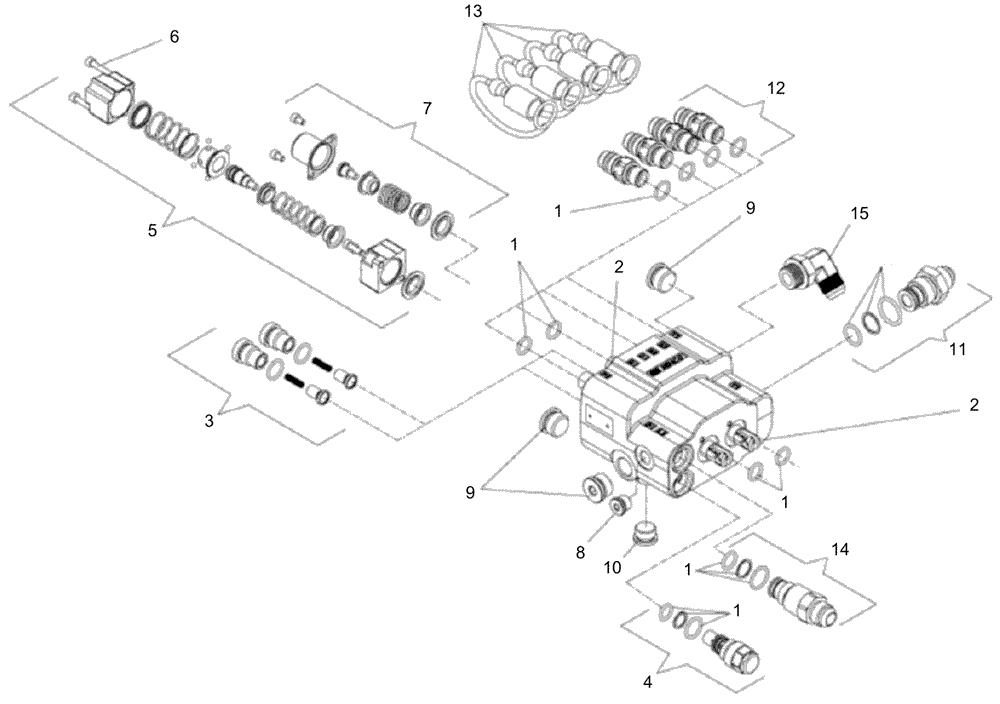

Схема запчастей Case IH L580 - (35.204.07) - LDR10550415 CONTROL VALVE - COMPONENTS (35) - HYDRAULIC SYSTEMS
1
1
10
7
8
12
9
6
9
14
11
2
5
15
3
1
1
13
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR5039046

SEAL KIT

Seal Kit

1шт.

2

LDR5034128

CONTROL VALVE

Spool Control

2шт.

3

LDR5034129

CHECK VALVE

Check Valve Coupling

2шт.

4

LDR5034130

VALVE PRESSURE RELIE

Pressure Relief Valce

1шт.

5

LDR5034131

COUPLING

Spool Control Unit Coupling

1шт.

6

LDR5004003

SCREW

Screw, MC6S M5 x 35

2шт.

7

LDR5034132

COUPLING

Spool Control Unit Coupling

1шт.

8

LDR5028121

PLUG

UNF 9/16"

1шт.

9

LDR521854

PLUG

UNF 7/8"-14

3шт.

10

LDR5028131

PLUG

UNF 3/4"-16

1шт.

11

LDR5034133

ADAPTER

Adapter Coupling

1шт.

12

LDR5044975

QUICK MALE COUPLING

Quick Coupling

4шт.

13

LDR5034134

CAP

4шт.

14

LDR5034135

ADAPTER

Adapter Coupling

1шт.

15

LDR5028132

ADAPTER

Adapter

1шт.
