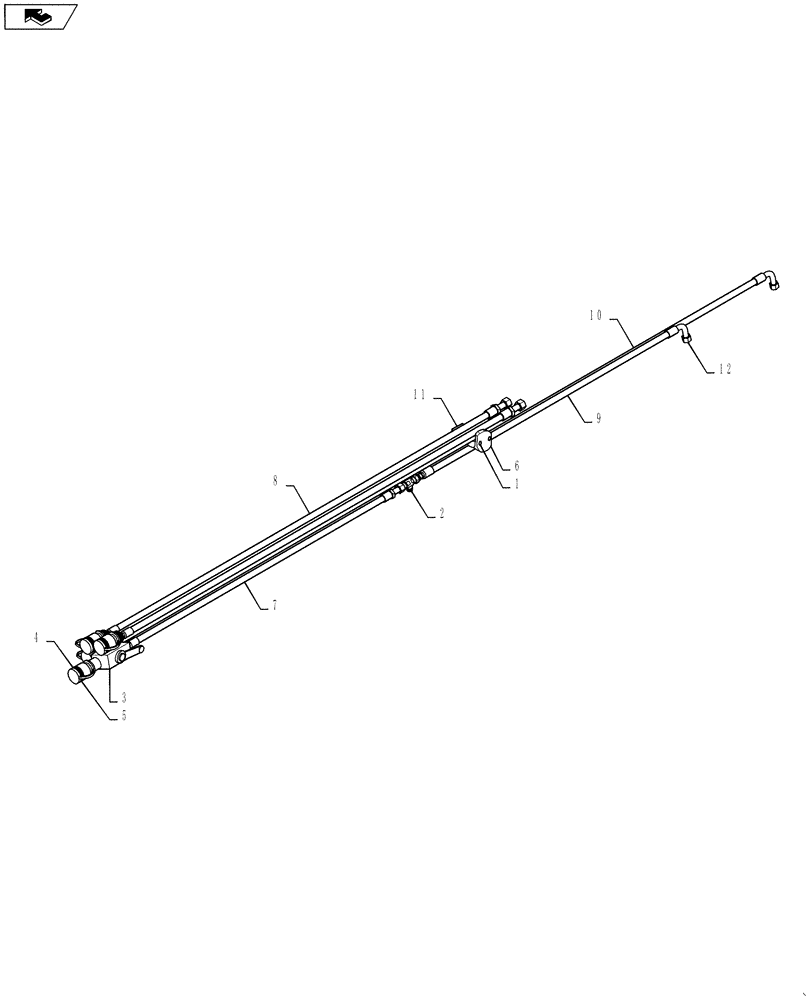

Запчасти Case IH L580 (35.204.02) - MAIN HOSE KIT (35) - HYDRAULIC SYSTEMS

1

LDR5004943

SCREW

MC6S M6 x 35

2шт.

2

LDR5028142

ADAPTER

JIC 2 x 9/16 1 x 3/4

2шт.

3

LDR5034110

SHUT-OFF VALVE

1шт.

4

LDR5034111

CAP

4шт.

5

LDR5044973

COUPLING, QUICK, FEM

4шт.

6

LDR5221880

HOSE CLAMP

L550 MSL, L550 NSL

2шт.

6

LDR5221919

HOSE CLAMP

L560 MSL, L560 NSL, L570 MSL, L570 NSL, L580 MSL, L580 NSL

2шт.

7

LDR9031724

FLEXIBLE HOSE

3/8" L=850mm, L550 MSL, L550 NSL

2шт.

7

LDR9031699

FLEXIBLE HOSE

1/2" L=850mm, L560 MSL, L560 NSL, L570 MSL, L570 NSL, L580 MSL, L580 NSL

2шт.

8

LDR9031700

FLEXIBLE HOSE

3/8" L=3040mm, L550 MSL, L550 NSL

2шт.

8

LDR9031720

FLEXIBLE HOSE

1/2" L=3210mm, L560 MSL, L560 NSL

2шт.

8

LDR9031721

FLEXIBLE HOSE

1/2" L=3335mm, L570 MSL, L570 NSL

2шт.

8

LDR9031722

FLEXIBLE HOSE

1/2" L=3520mm, L580 MSL, L580 NSL

2шт.

9

LDR9031712

FLEXIBLE HOSE

3/8" L=3860mm, L550 MSL, L550 NSL

1шт.

9

LDR9031713

FLEXIBLE HOSE

3/8" L=4075mm, L560 MSL, L560 NSL

1шт.

9

LDR9031714

FLEXIBLE HOSE

3/8" L=4350mm, L570 MSL, L570 NSL

1шт.

9

LDR9031715

FLEXIBLE HOSE

3/8" L=4770mm, L580 MSL, L580 NSL

1шт.

10

LDR9031716

FLEXIBLE HOSE

3/8" L=4280mm, L550 MSL, L550 NSL

1шт.

10

LDR9031717

FLEXIBLE HOSE

3/8" L=4610mm, L560 MSL, L560 NSL

1шт.

10

LDR9031718

FLEXIBLE HOSE

3/8" L=4900mm, L570 MSL, L570 NSL

1шт.

10

LDR9031719

FLEXIBLE HOSE

3/8" L=5300mm, L580 MSL, L580 NSL

1шт.

11

LDR20708137

NUT

M6 FZB

2шт.

12

LDR5028051

ADAPTER

1шт.
