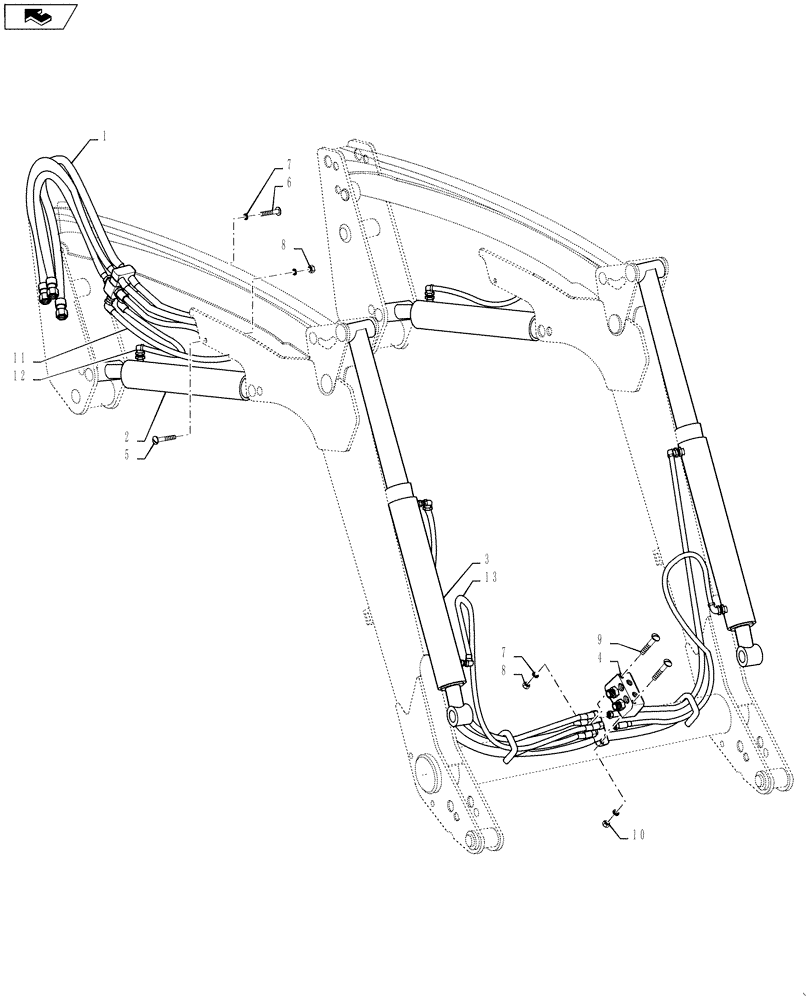

Запчасти Case IH L580 (35.204.01[03]) - HYDRAULICS, L560 MSL, L560 NSL, L570 MSL, L570 NSL, L580 MSL, L580 NSL (35) - HYDRAULIC SYSTEMS

1

LDR9031936

SERVICE KIT

Main Hose, L560 MSL, L560 NSL

1шт.

1

LDR9031937

SERVICE KIT

Main Hose, L570 MSL, L570 NSL

1шт.

1

LDR9031938

SERVICE KIT

Main Hose, L580 MSL, L580 NSL

1шт.

2

LDR12717510

HYDRAULIC CYLINDER

L560 MSL

2шт.

2

LDR12717410

HYDRAULIC CYLINDER

L560 NSL

2шт.

2

LDR12719010

HYDRAULIC CYLINDER

L570 MSL

2шт.

2

LDR12717610

HYDRAULIC CYLINDER

L570 NSL

2шт.

2

LDR12717710

HYDRAULIC CYLINDER

L580 MSL

2шт.

2

LDR12717810

HYDRAULIC CYLINDER

L580 NSL

2шт.

3

LDR12718310

HYDRAULIC CYLINDER

L560 MSL

2шт.

3

LDR12718210

HYDRAULIC CYLINDER

L560 NSL

2шт.

3

LDR12718510

HYDRAULIC CYLINDER

L570 MSL

2шт.

3

LDR12718410

HYDRAULIC CYLINDER

L570 NSL

2шт.

3

LDR12718710

HYDRAULIC CYLINDER

L580 MSL

2шт.

3

LDR12718610

HYDRAULIC CYLINDER

L580 NSL

2шт.

4

LDR10550406

VALVE

Diverter, L560 MSL, L570 MSL, L580 MSL

1шт.

4

LDR10550412

VALVE

Diverter, L560 NSL, L570 NSL, L580 NSL

1шт.

5

LDR5004939

SCREW

MC6S 8 x 90

1шт.

6

LDR5004055

SCREW

MC6S 8 x 70

1шт.

7

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4 x 16 x 1.5, L560 MSL, L570 MSL, L580 MSL

4шт.

7

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4 x 16 x 1.5, L560 NSL, L570 NSL, L580 NSL

3шт.

8

LDR5011553

NUT,M8

M6M M8 Loc-King

2шт.

9

LDR5002978

SCREW

M6S 8 x 129, L560 MSL, L570 MSL, L580 MSL

2шт.

10

LDR5011928

NUT

1шт.

11

LDR9031725

HOSE

3/8", L560 MSL, L560 NSL

1шт.

11

LDR9031711

HOSE

3/8", L570 MSL, L570 NSL, L580 MSL, L580 NSL

1шт.

12

LDR9031710

HOSE

3/8"

1шт.

13

LDR9031723

HOSE

3/8"

4шт.
