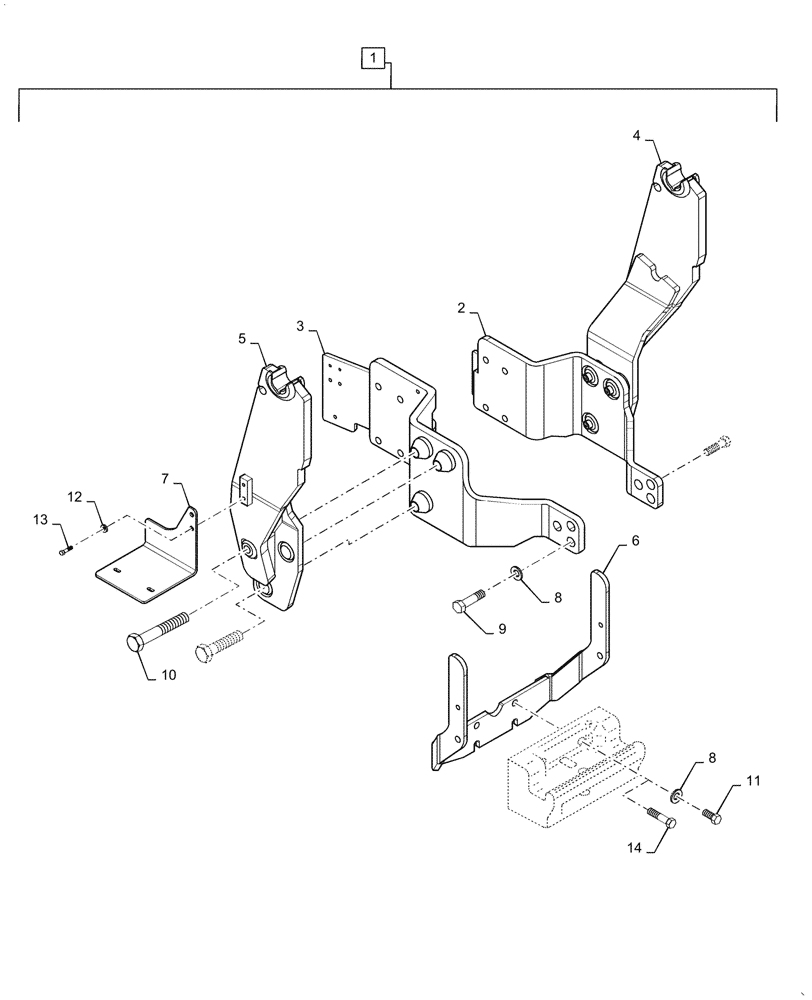

Запчасти Case IH L575 (39.100.080) - VAR - 713619006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 14. Order Through Wholegoods 713619006

1шт.

Compatible Tractors - Farmall 85/95/105/115C ROPS/Cab, 2WD/4WD

1шт.

2

NSS

NOT SOLD SEPARAT

Side Rail, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Side Rail, RH, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Upright, LH, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Upright, RH, Incl in 1

1шт.

6

LDR10417650

GUARD

Grille

1шт.

7

LDR10416768

BRACKET

Support

1шт.

8

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

10шт.

Qty 4 Used If Weight Carrier Not Installed

1шт.

9

LDR5002989

SCREW

M20 x 1.5 x 75mm L

6шт.

10

LDR20705246

SCREW

M20 x 140mm L, Cl 10.9

2шт.

11

LDR5002209

SCREW

M20 x 45mm L

4шт.

Used If Weight Carrier Not Installed

1шт.

12

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

2шт.

13

LDR5002089

BOLT,M10 x 25mm, Cl 8.8

2шт.

14

LDR5002210

BOLT

M20 x 90mm L, Cl 8.8

4шт.

Used If Weight Carrier Installed

1шт.
