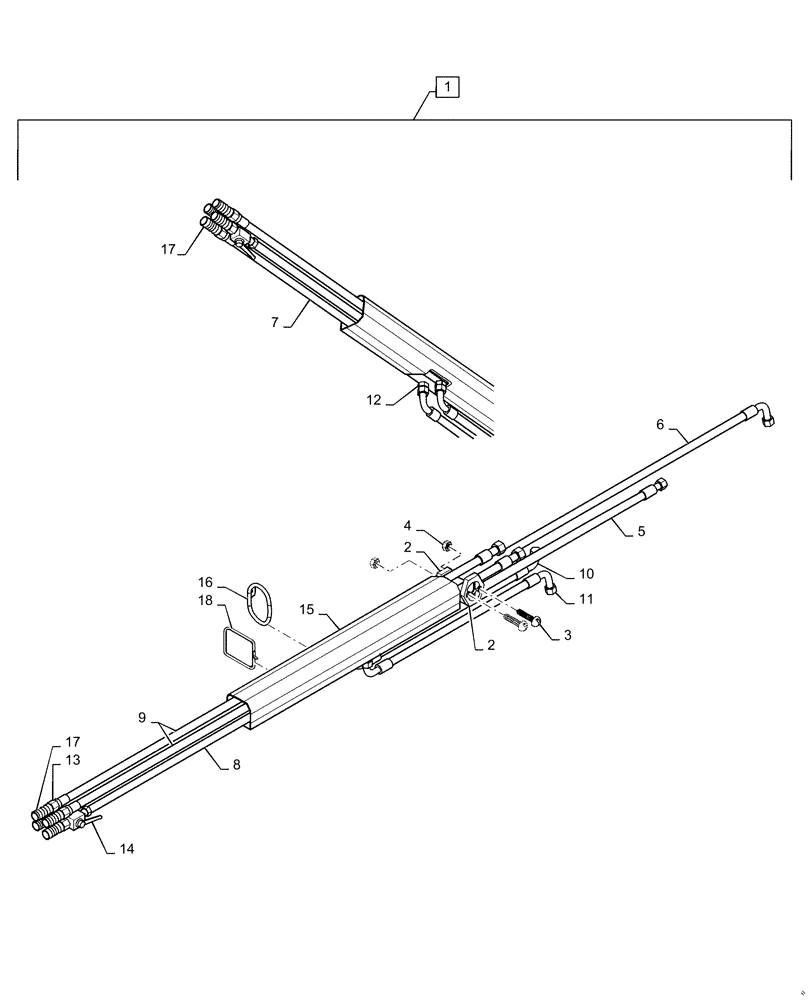

Запчасти Case IH L575 (35.701.AC[01]) - MAIN, HOSE (35) - HYDRAULIC SYSTEMS

1

LDR6000879

HOSE

Main Hose Kit, Incl 2 - 18

1шт.

2

LDR5221919

HOSE CLAMP

2шт.

3

LDR5004947

SCREW

M6 x 50mm L

2шт.

4

LDR20708137

NUT

M6

2шт.

5

LDR9031713

FLEXIBLE HOSE

8mm ID, 4075mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

6

LDR9031717

FLEXIBLE HOSE

8mm ID, 4610mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

7

LDR9032334

HOSE

2mm ID, 850mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

8

LDR9032339

HOSE

2mm ID, 775mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

9

LDR9032340

HOSE

2mm ID, 3210mm L

2шт.

Breakdown on 35.100.BI (01)

1шт.

10

LDR9031710

HOSE

8mm ID, 520mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

11

LDR9031939

HOSE

8mm ID, 520mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

12

LDR5028142

ADAPTER

2шт.

13

LDR5013853

WASHER

Tredo 18

5шт.

14

LDR5033898

VALVE

1шт.

15

LDR5221969

COVER

Hose

1шт.

16

LDR5221966

GUIDE

1шт.

17

LDR5044976

COUPLING

4шт.

18

LDR11902159

CABLE TIE

1шт.
