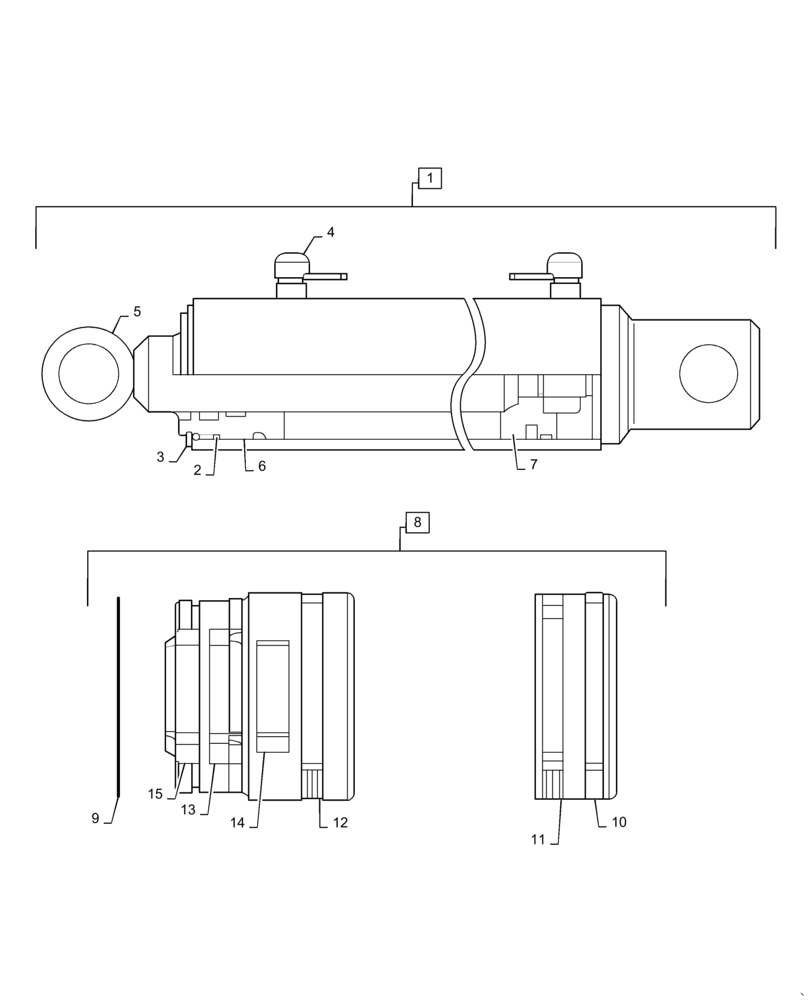

Запчасти Case IH L575 (35.640.AA[01]) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR12727210

CYLINDER BLOCK

Lift Arm, Incl 2 - 7, 9 - 15

1шт.

1

LDR60012121

HYDRAULIC CYLINDER

Lift Arm, Incl 2 - 7, 9 - 15

1шт.

2

LDR5016669

RING

Retaining

1шт.

3

LDR5016621

RING

Retaining

1шт.

4

LDR5028083

PLUG

2шт.

5

LDR12727213

PISTON ROD

Cylinder

1шт.

Goes With LDR12727210

1шт.

5

LDR60012117

PISTON ROD

Cylinder

1шт.

Goes With LDR60012121

1шт.

6

LDR12707011

BEARING

1шт.

7

LDR12707212

PISTON

1шт.

8

LDR5033704

SEAL KIT

Services 1, Contains 7 Seals, Incl 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, 3mm ID x 63mm OD, Incl in 1, 8

1шт.

10

NSS

NOT SOLD SEPARAT

Guide Ring, 5mm ID x 65mm OD, Incl in 1, 8

1шт.

11

NSS

NOT SOLD SEPARAT

Piston Seal, 5mm ID x 54mm OD, Incl in 1, 8

1шт.

12

NSS

NOT SOLD SEPARAT

Cover Seal, 6mm ID x 64mm OD, Incl in 1, 8

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, 10mm ID x 50mm OD, Incl in 1, 8

1шт.

14

NSS

NOT SOLD SEPARAT

Guide Ring, 9mm ID x 45mm OD, Incl in 1, 8

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper, Incl in 1, 8

1шт.
