(35.355.AC[02]) - JOYSTICK STEERING VALVE - NON-SELF LEVELING

Запчасти Case IH L575 (35.355.AC[02]) - JOYSTICK STEERING VALVE - NON-SELF LEVELING (35) - HYDRAULIC SYSTEMS

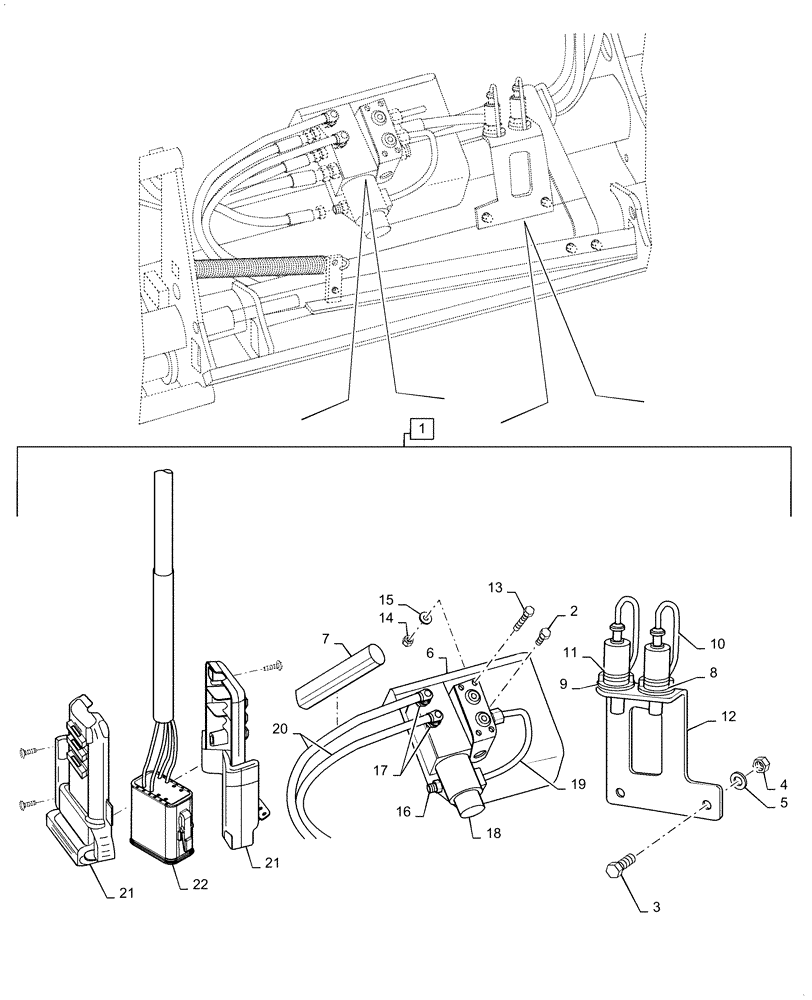

Схема запчастей Case IH L575 - (35.355.AC[02]) - JOYSTICK STEERING VALVE - NON-SELF LEVELING (35) - HYDRAULIC SYSTEMS
13
2
16
15
8
1
21
4
9
18
21
22
6
11
10
17
7
19
12
3
5
20
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR10550501

WIRE

3rd Service, Incl 2 - 22

1шт.

2

LDR5002060

SCREW

M6S

2шт.

3

LDR5002077

SCREW

10mm ID x 30mm OD

2шт.

4

LDR5011554

NUT,M10

2шт.

5

LDR5013102

WASHER,10mm ID x 18mm OD x 2mm Thk

4шт.

6

LDR5221270

PLATE

Protection

1шт.

7

LDR5221975

HOSE

Cover

1шт.

8

LDR5022157

WASHER

1шт.

9

LDR5022159

WASHER

1шт.

10

LDR5044129

CAP

2шт.

11

LDR5044940

QUICK MALE COUPLING,3/8" BSP

2шт.

12

LDR5222580

BRACKET

1шт.

13

LDR5002978

SCREW

M6S

2шт.

14

LDR5011553

NUT,M8

1шт.

15

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

1шт.

16

LDR5028109

ADAPTER

2шт.

17

LDR5028262

ADAPTER

2шт.

18

LDR5221389

SERVICE KIT

Valve

1шт.

19

LDR5222581

PIPE

Oil

2шт.

20

LDR1103117

FLEXIBLE HOSE

3mm ID x 8mm L

2шт.

21

LDR5103054

COVER

Connector

1шт.

22

LDR5102206

WIRE HARNESS

Harness

1шт.
