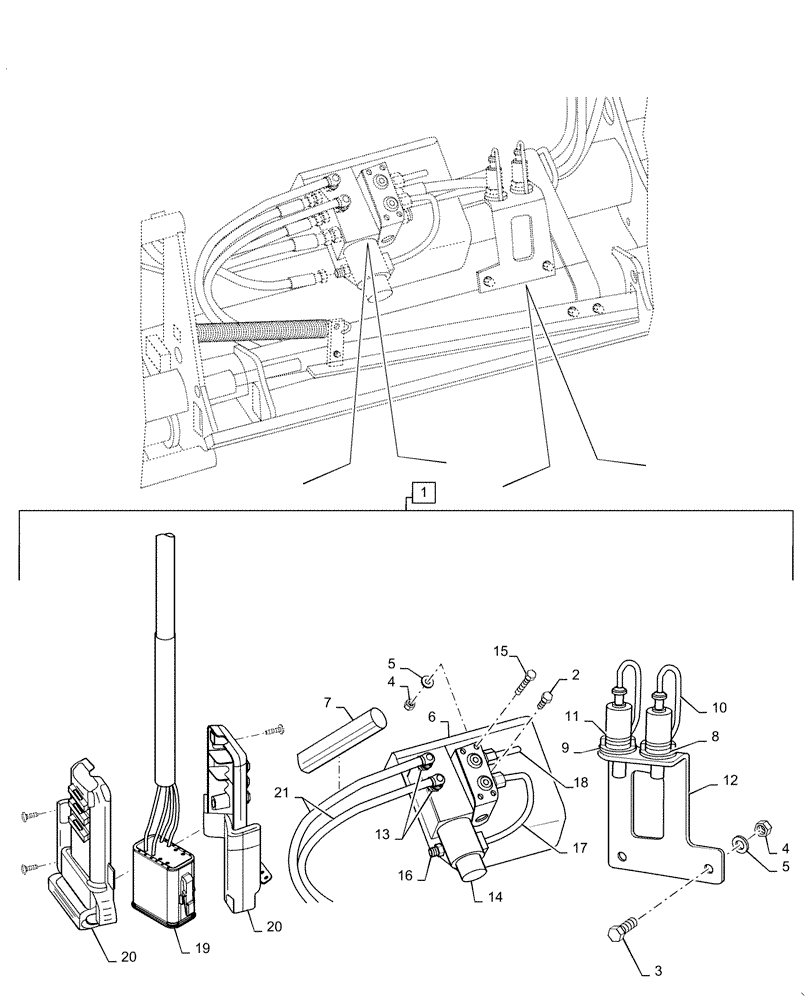

Запчасти Case IH L575 (35.355.AC[01]) - JOYSTICK STEERING VALVE - MECHANICAL SELF LEVELING (35) - HYDRAULIC SYSTEMS

1

LDR10550499

WIRE

3rd Service, Incl 2 - 21

1шт.

2

LDR5002060

SCREW

M6S

2шт.

3

LDR5002077

SCREW

10mm ID x 30mm OD

2шт.

4

LDR5011554

NUT,M10

2шт.

5

LDR5013102

WASHER,10mm ID x 18mm OD x 2mm Thk

4шт.

6

LDR5221270

PLATE

Protection

1шт.

7

LDR5221975

HOSE

Cover

1шт.

8

LDR5022157

WASHER

1шт.

9

LDR5022159

WASHER

1шт.

10

LDR5044129

CAP

2шт.

11

LDR5044940

QUICK MALE COUPLING,3/8" BSP

2шт.

12

LDR5222580

BRACKET

1шт.

13

LDR5028262

ADAPTER

2шт.

14

LDR5221387

SERVICE KIT

Valve

1шт.

15

LDR5004056

SCREW

M8 x 65mm L

4шт.

16

LDR5039034

O-RING

2шт.

17

LDR5222581

PIPE

Oil

2шт.

18

LDR5028109

ADAPTER

2шт.

19

LDR5102206

WIRE HARNESS

Harness

1шт.

20

LDR5103054

COVER

Connector

1шт.

21

LDR1103117

FLEXIBLE HOSE

3mm ID x 8mm L

1шт.
