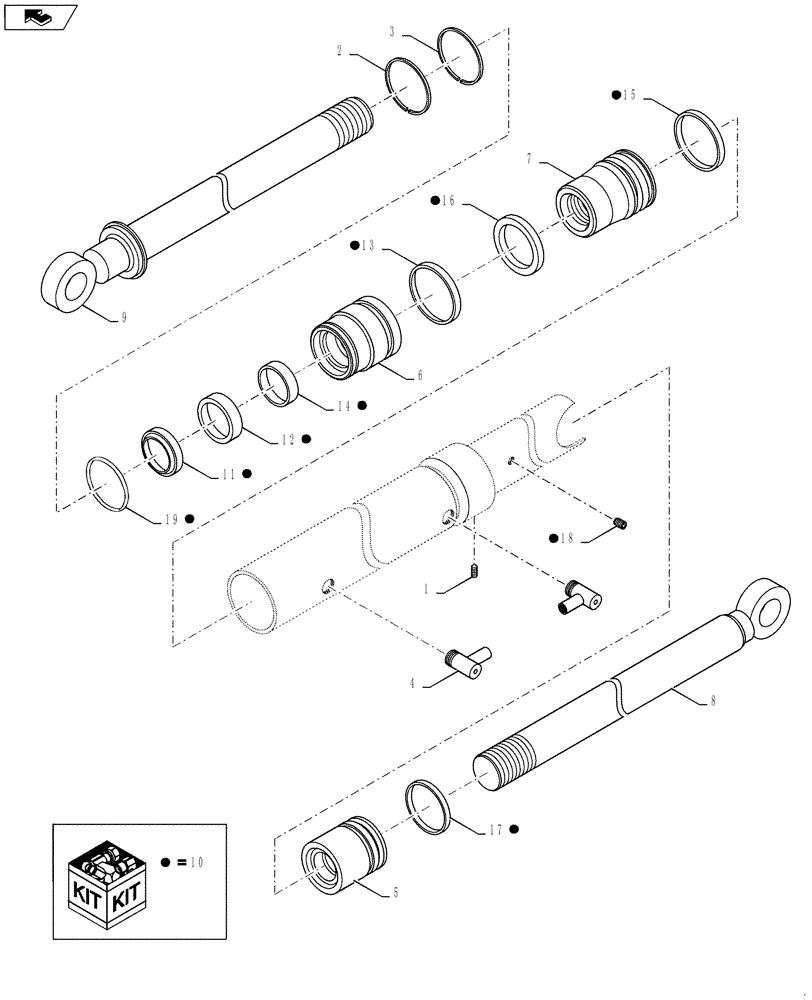

Запчасти Case IH L570 (35.100.03[05]) - CYLINDER LDR12718510 (35) - HYDRAULIC SYSTEMS

1

LDR5006021

SCREW

Stop

2шт.

2

LDR5016618

RING

Retaining

1шт.

3

LDR5016665

RING

Retaining

1шт.

4

NSS

NOT SOLD SEPARAT

SHIPPING PLUG

1шт.

5

LDR12700017

GUIDE

1шт.

6

LDR12707511

BEARING

1шт.

7

LDR12707512

PISTON

1шт.

8

LDR12700415

ROD

Rear

1шт.

9

LDR12714913

ROD

Piston

1шт.

10

LDR5033713

SEAL KIT

Inc. 11-19

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER, 40/50 x 7/10

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL, 40/50 x 10

2шт.

13

NSS

NOT SOLD SEPARAT

COVER SEAL, 75 x 69.6 x 6.2

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE RING, 40/45 x 9.7

2шт.

15

NSS

NOT SOLD SEPARAT

GUIDE RING, 75/70 x 5.5

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON SEAL, 75/59.5 x 6.3

1шт.

17

NSS

NOT SOLD SEPARAT

COVER SEAL, 52.4 x 58 x 3.6 x 2.8

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING, 68.26 x 3 x 53

1шт.
