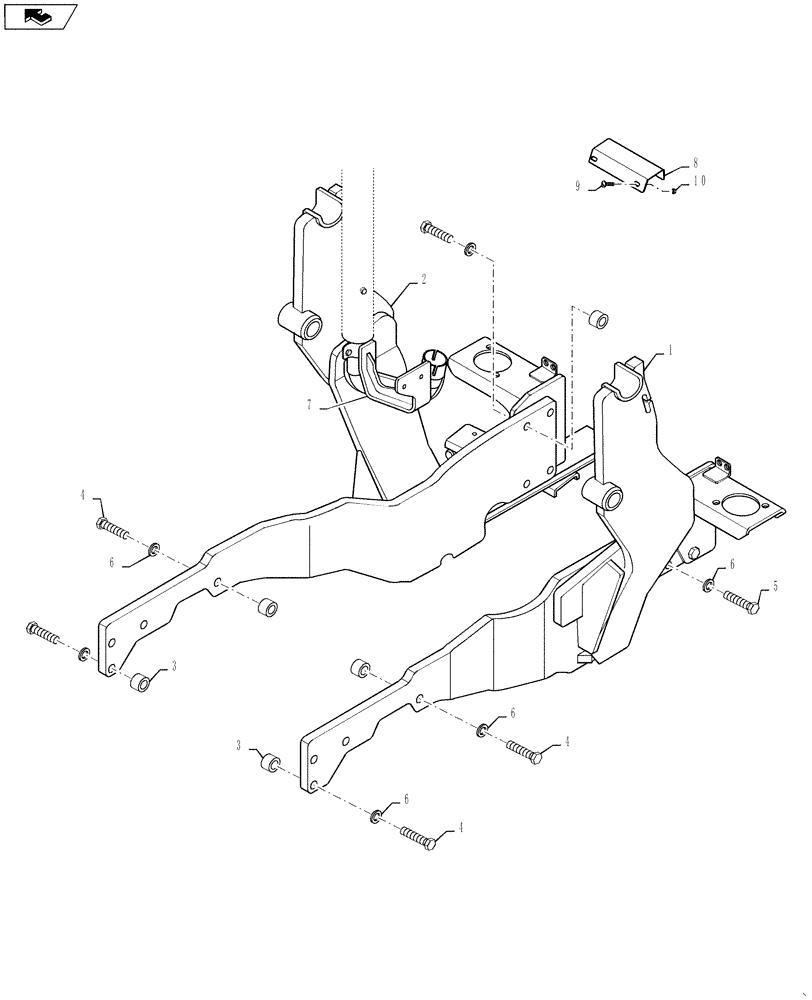

Запчасти Case IH L570 (82.100.08) - SUBFRAME SET, FARMALL 90, 95 - 730878006 (82) - FRONT LOADER & BUCKET

1

LDR10413587

FRAME

Sub, Left Hand

1шт.

2

LDR10413588

FRAME

Sub, Right Hand

1шт.

3

LDR9010011

SPACER

Sleeve

8шт.

4

LDR5002756

BOLT

M6S M16 x 1.5 x 80 (8.8)

8шт.

5

LDR5002761

BOLT

M6S M16 x 1.5 x 90 (8.8)

1шт.

6

LDR5013105

WASHER

BRB 30 x 17 x 3

9шт.

7

LDR10388590

BRACKET

Support

1шт.

8

LDR10389602

BRACKET

Support

1шт.

9

LDR5002053

SCREW,M8 x 30mm L

M6S 8 x 30

2шт.

10

LDR5011053

NUT

M6M 8

2шт.
