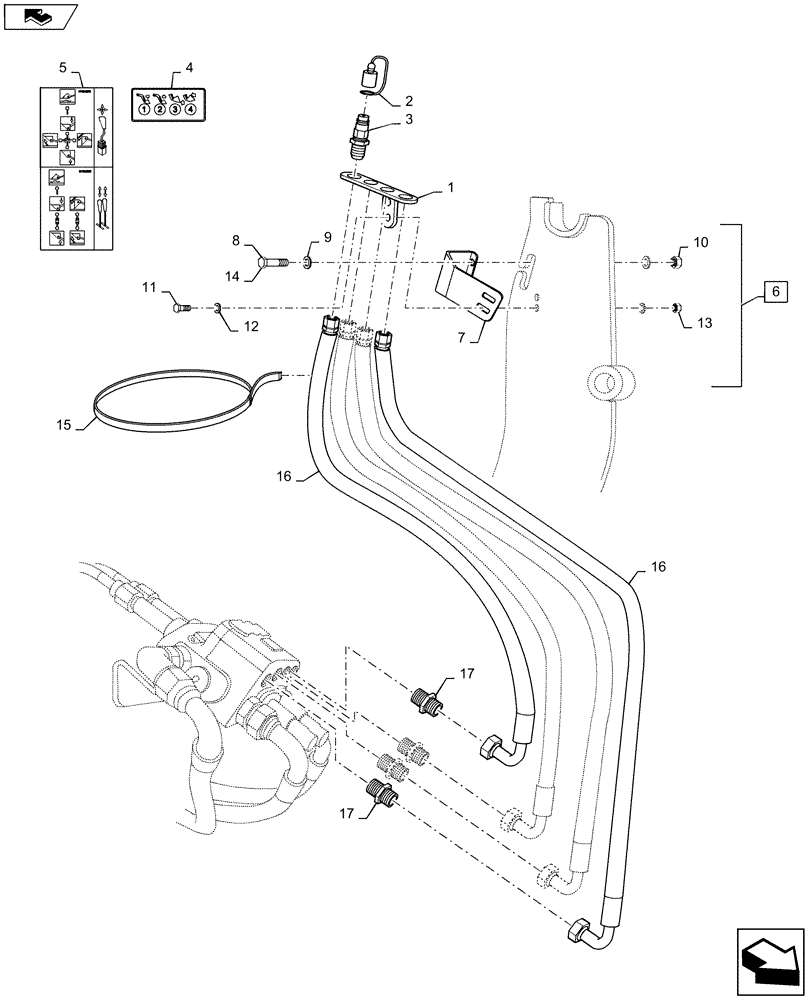

Запчасти Case IH L570 (35.204.04) - HYDRAULIC HOSE KIT, FARMALL U, JXU - 716880026 (35) - HYDRAULIC SYSTEMS

1

LDR10412331

BRACKET

Support

1шт.

2

LDR5034134

CAP

1шт.

3

LDR5044978

QUICK MALE COUPLING

3/8" - 7/8 JIC

4шт.

4

LDR11133365

DECAL

Joystick Control

1шт.

5

LDR11134370

DECAL

Joystick Control

1шт.

6

LDR10412788

BRACKET

Incl 7 - 14

1шт.

Not Illustrated (Art Is Temp, Will Be Shown When Corrected Art Is Received)

1шт.

7

LDR10412332

BRACKET

1шт.

8

LDR5002107

SCREW

M6S M12 x 55 (8.8)

2шт.

9

LDR5013104

WASHER

BRB 13.5 x 24 x 2

4шт.

10

LDR5011555

NUT,M12

M12

2шт.

11

LDR5002051

SCREW,M6S

M6S 8 x 20

2шт.

12

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4 x 16 x 1.5

2шт.

13

LDR5011053

NUT

M6 M8

2шт.

14

LDR5002105

SCREW

M6S M12 x 45 (8.8)

2шт.

15

LDR5033606

CABLE TIE

(Not Shown)

4шт.

Not Illustrated

1шт.

16

LDR9032038

FLEXIBLE HOSE,870mm L

7/8" JIC x 870

4шт.

17

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

7/8" UNF JIC-M18 x 1.5

4шт.
