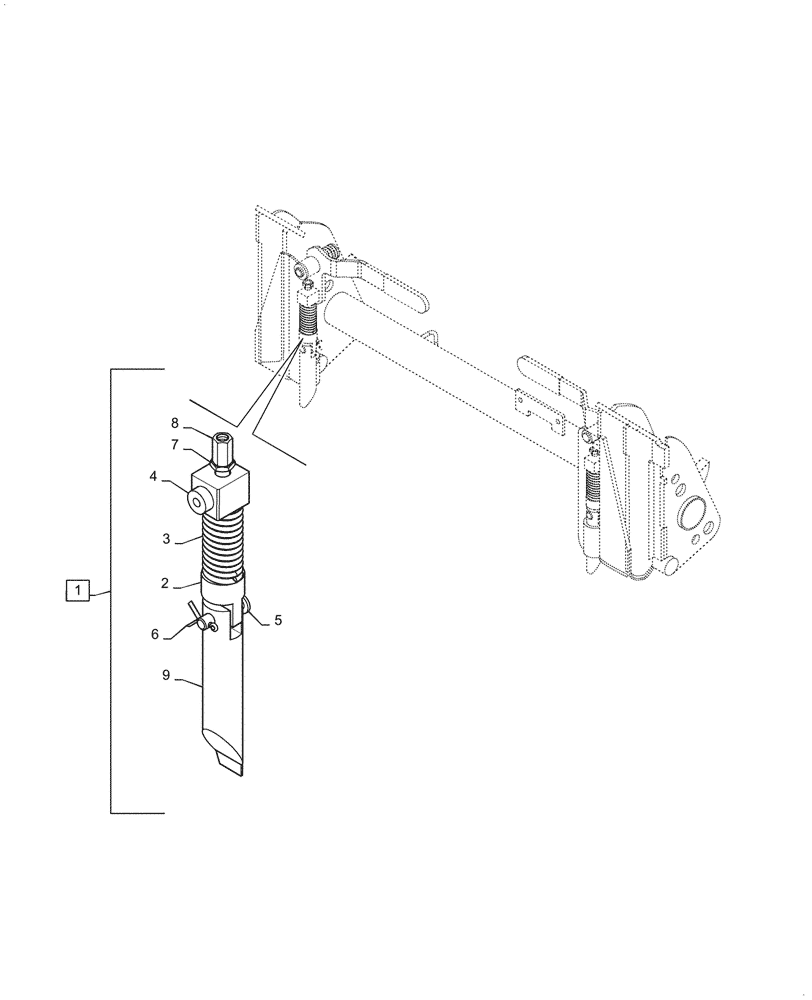

Запчасти Case IH L565 (82.100.AH[08]) - LATCH CONVERSION KIT (82) - FRONT LOADER & BUCKET

1

LDR60017709

Assy, Incl 2 - 9

LATCH

1шт.

2

LDR5221537

Lower, Latch

PIVOT

1шт.

3

LDR5221538

SPRING

Tension

1шт.

4

LDR5221535

Upper

LUG

1шт.

5

LDR5021961

LINCH PIN

Securing, 10mm OD x 40mm L

1шт.

6

LDR5016997

SPLIT PIN/SAFETY PIN

Linch Pin

1шт.

7

LDR5050560

M10

NUT

1шт.

8

LDR5050600

M10 x 20mm L

NUT

1шт.

9

LDR60013060

Lower

PIN

1шт.
