(82.100.AH[06]) - TOOL CARRIER, DUAL MANUAL RELEASE (AFTER JAN 1 2016)

Запчасти Case IH L565 (82.100.AH[06]) - TOOL CARRIER, DUAL MANUAL RELEASE (AFTER JAN 1 2016) (82) - FRONT LOADER & BUCKET

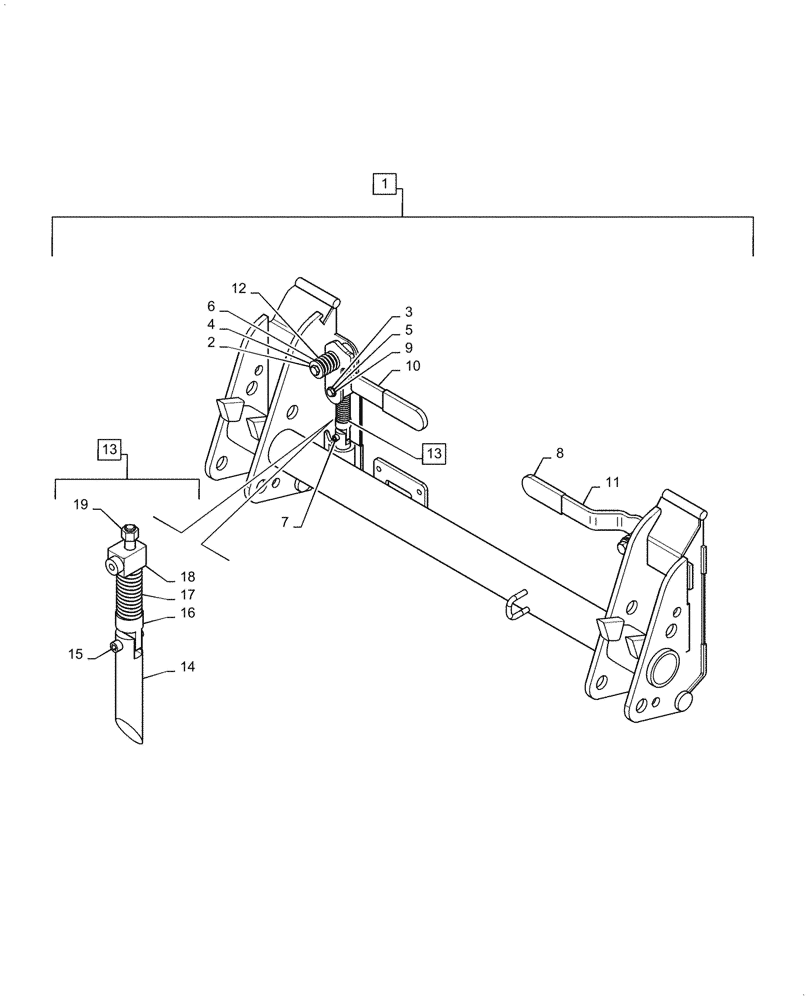

Схема запчастей Case IH L565 - (82.100.AH[06]) - TOOL CARRIER, DUAL MANUAL RELEASE (AFTER JAN 1 2016) (82) - FRONT LOADER & BUCKET
10
15
3
13
18
14
4
13
5
19
6
2
1
9
11
16
17
8
12
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR60009058

Tool, Assy, Incl 2 - 18

CARRIER

1шт.

2

LDR5002103

SCREW,M12 x 35mm L

2шт.

3

LDR5013404

WASHER

8.1mm ID x 14.8mm OD x 2mm Thk

2шт.

4

LDR5013408

WASHER

12.2mm ID x 21.1mm OD x 2.5mm Thk

2шт.

5

LDR5013916

WASHER

8.4mm ID x 24mm OD x 2mm Thk

2шт.

6

LDR5013924

WASHER

13mm ID x 36mm OD x 6mm Thk

2шт.

7

LDR5023005

LUBE NIPPLE

Greaer, M10

2шт.

8

LDR5022144

HANDLE

Cover

2шт.

9

LDR5002051

SCREW,M6S

2шт.

10

LDR5221533

HANDLE

LH

1шт.

11

LDR5221534

HANDLE

RH

1шт.

12

LDR5221539

SPRING

Handle, Tension

2шт.

13

LDR60009527

Assy, Incl 14 - 19

PIN

2шт.

14

LDR60009534

Lower

PIN

1шт.

15

LDR5016996

PIN

Securing

1шт.

16

LDR60009533

Upper, Pin Assy

ROD

1шт.

17

LDR5221538

SPRING

Tension

1шт.

18

LDR60009694

Upper

LUG

1шт.

19

LDR5011554

NUT,M10

1шт.
