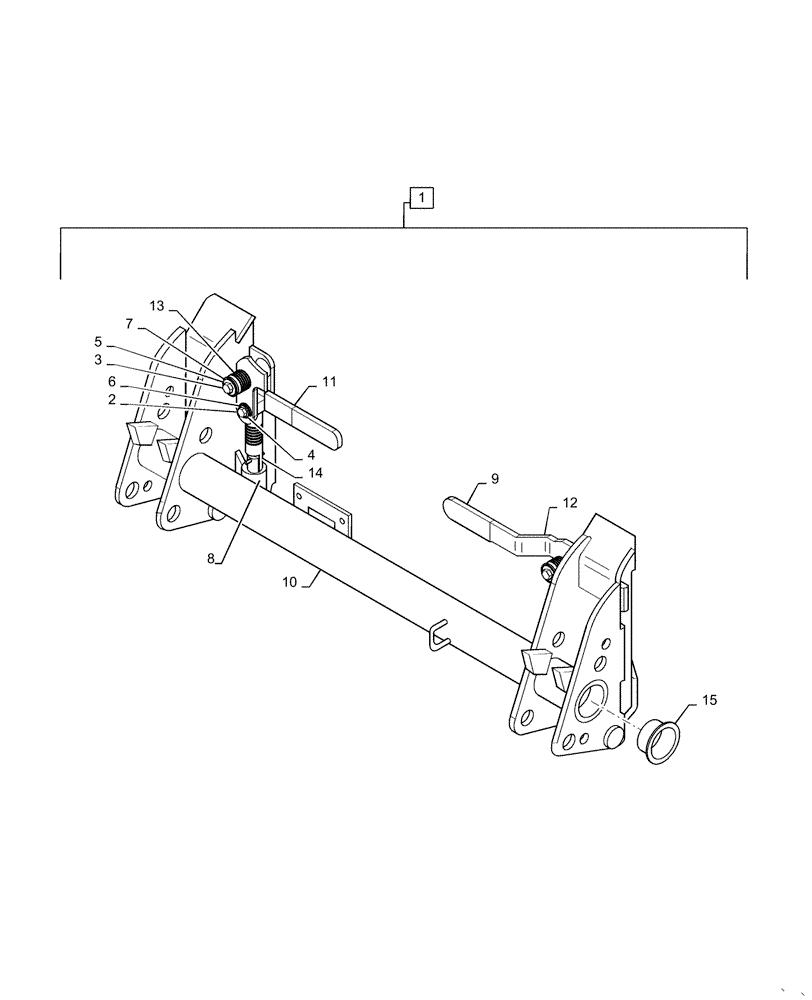

Запчасти Case IH L565 (82.100.AH[02]) - TOOL CARRIER, DUAL MANUAL RELEASE (BEFORE DEC 31 2015) (82) - FRONT LOADER & BUCKET

1

LDR5221281C

ARM

Loader, Incl in 2 - 15

1шт.

2

LDR5002051

SCREW,M6S

2шт.

3

LDR5002103

SCREW,M12 x 35mm L

2шт.

4

LDR5013404

WASHER

2mm ID x 8mm OD

2шт.

5

LDR5013408

WASHER

2mm ID x 21mm OD

2шт.

6

LDR5013916

WASHER

4mm ID x 24mm OD

2шт.

7

LDR5013924

WASHER

6mm ID x 13mm OD

2шт.

8

LDR5021901

LUBE NIPPLE

2шт.

9

LDR5022144

HANDLE

Cover

2шт.

10

LDR5221282C

TOOL

Carrier

1шт.

11

LDR5221533

HANDLE

LH

1шт.

12

LDR5221534

HANDLE

RH

1шт.

13

LDR5221539

SPRING

2шт.

14

LDR5221580

PIN

2шт.

15

LDR5221573

COVER

2шт.
