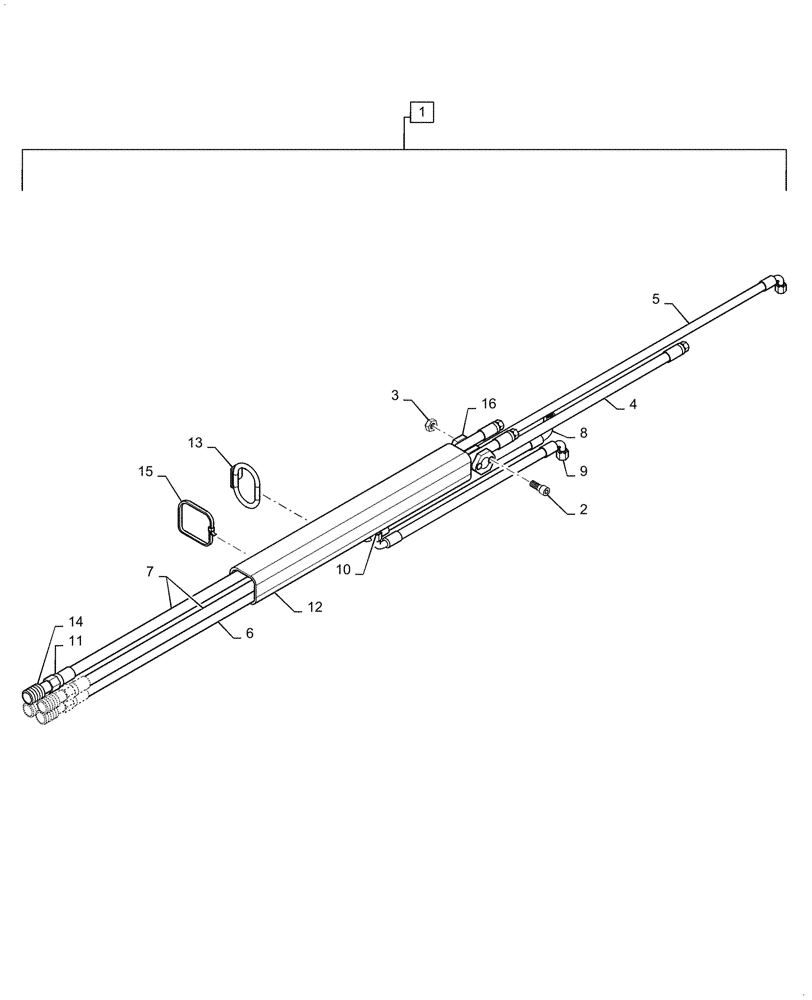

Запчасти Case IH L565 (35.701.AC[03]) - MAIN HOSE KIT (35) - HYDRAULIC SYSTEMS

1

LDR60000878

HOSE KIT

Main, Incl 2 - 16

1шт.

2

LDR5004030

SCREW

M6 x 45mm L

2шт.

3

LDR20708137

NUT

M6

2шт.

4

LDR9031712

FLEXIBLE HOSE

3/8" OD x 3860mm L

1шт.

5

LDR9031716

FLEXIBLE HOSE

3/8" OD x 4280mm L

1шт.

6

LDR9032331

HOSE

3/8" OD x 850mm L

2шт.

7

LDR9032333

HOSE

3/8" OD x 3040mm L

2шт.

8

LDR9031710

HOSE

3/8" OD x 520mm L

1шт.

9

LDR9031939

HOSE

3/8" OD x 520mm L

1шт.

10

LDR5028142

ADAPTER

2шт.

11

LDR5013853

WASHER

Tredo 18

5шт.

12

LDR5221970

COVER

890mm L

1шт.

13

LDR5221966

GUIDE

1шт.

14

LDR5044976

COUPLING

3/8"

4шт.

15

LDR11902159

CABLE TIE

1шт.

16

LDR5221880

HOSE CLAMP

2шт.
