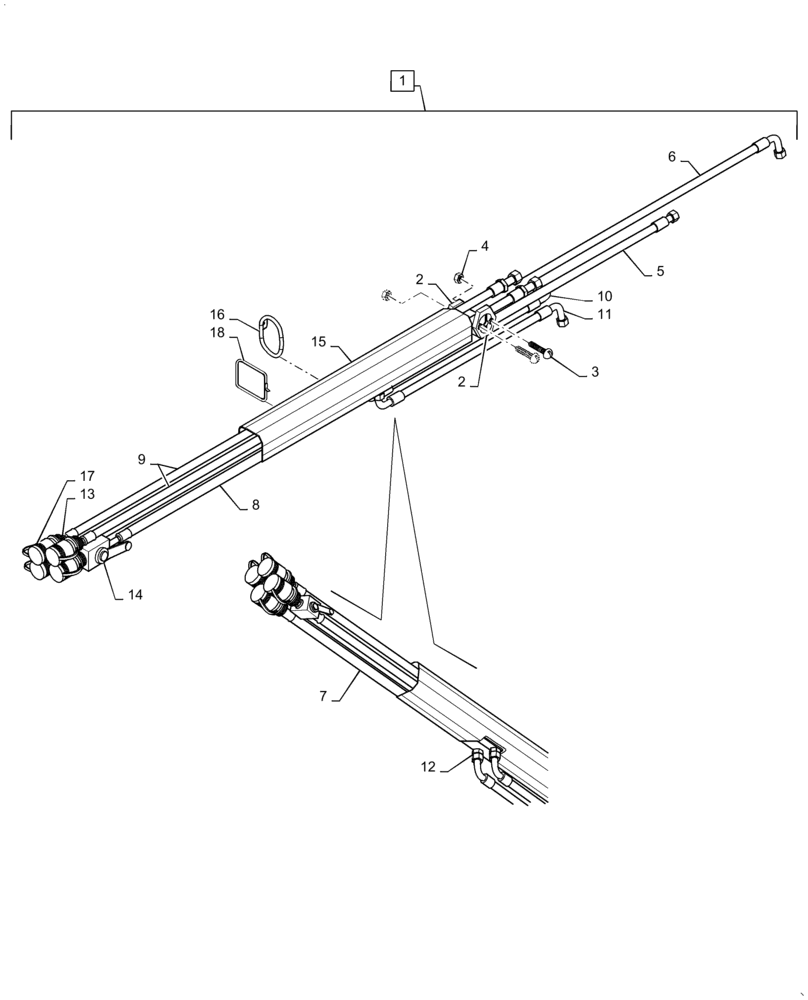

Запчасти Case IH L565 (35.701.AC[01]) - MAIN, HOSE (35) - HYDRAULIC SYSTEMS

1

LDR60000878

HOSE KIT

Incl 2 - 18

1шт.

2

LDR5221880

HOSE CLAMP

2шт.

3

LDR5004030

SCREW

M6 x 45mm L

2шт.

4

LDR20708137

NUT

M6

2шт.

5

LDR9031712

FLEXIBLE HOSE

8mm, 3860mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

6

LDR9031716

FLEXIBLE HOSE

8mm, 4280mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

7

LDR9032331

HOSE

8mm, 850mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

8

LDR9032332

HOSE

8mm, 775mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

9

LDR9032333

HOSE

8mm, 3040mm L

2шт.

Breakdown on 35.100.BI (01)

1шт.

10

LDR9031710

HOSE

8mm, 520mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

11

LDR9031939

HOSE

8mm, 520mm L

1шт.

Breakdown on 35.100.BI (01)

1шт.

12

LDR5028142

ADAPTER

2шт.

13

LDR5013853

WASHER

Tredo 18

5шт.

14

LDR5033898

VALVE

Shut Off

1шт.

15

LDR5221970

COVER

Hose

1шт.

16

LDR5221966

GUIDE

1шт.

17

LDR5044976

COUPLING

4шт.

18

LDR11902159

CABLE TIE

1шт.
