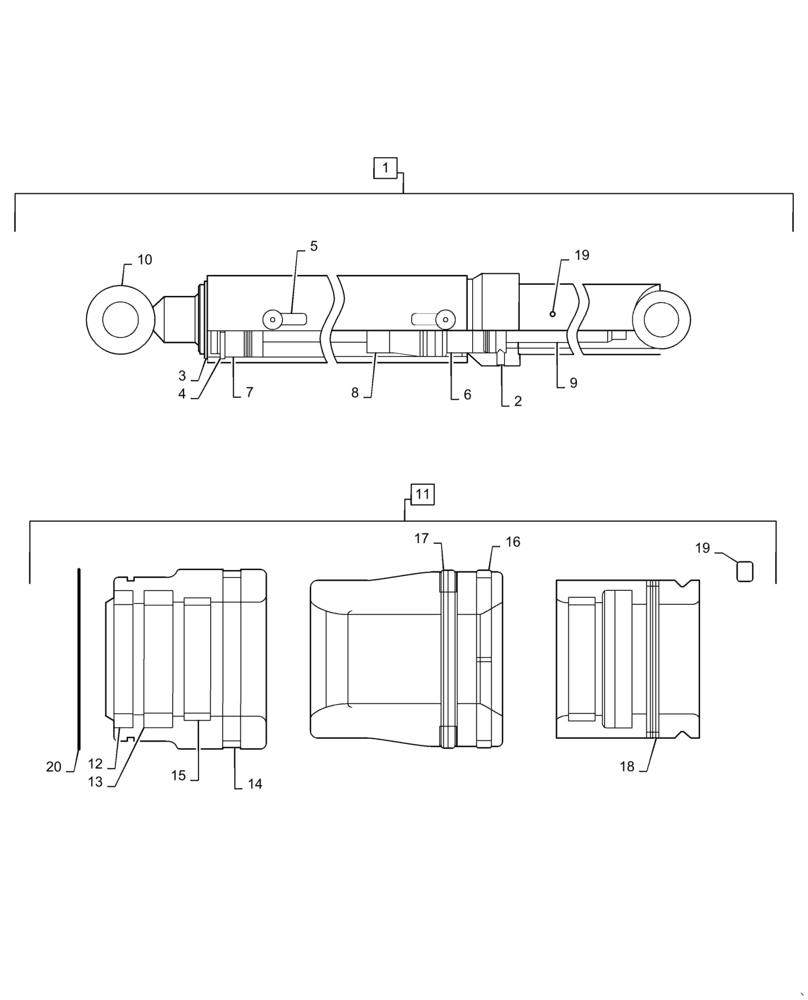

Запчасти Case IH L565 (35.640.AA[02]) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR12718310

HYDRAULIC CYLINDER

Cylinder, Incl 2 - 20

1шт.

2

LDR5005983

SCREW

Stop

2шт.

3

LDR5016621

RING

Retaining

1шт.

4

LDR5016669

RING

Retaining

1шт.

5

LDR5028083

PLUG

1шт.

6

LDR12700017

GUIDE

1шт.

7

LDR12707011

BEARING

1шт.

8

LDR12707012

PISTON

1шт.

9

LDR12714715

ROD

1шт.

10

LDR12714913

ROD

Piston

1шт.

11

LDR5033712

SEAL KIT

Incl 12 - 20

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, 4mm ID x 50mm OD, Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

Cover Seal, 2mm ID x 64mm OD, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Guide Ring, 9mm ID x 45mm OD, Incl in 1

2шт.

16

NSS

NOT SOLD SEPARAT

Guide Ring, 5mm ID x 65mm OD, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Piston Seal, 6mm ID x 54mm OD, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Cover Seal, 4mm ID x 58mm OD, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, 3mm ID x 63mm OD, Incl in 1

1шт.
