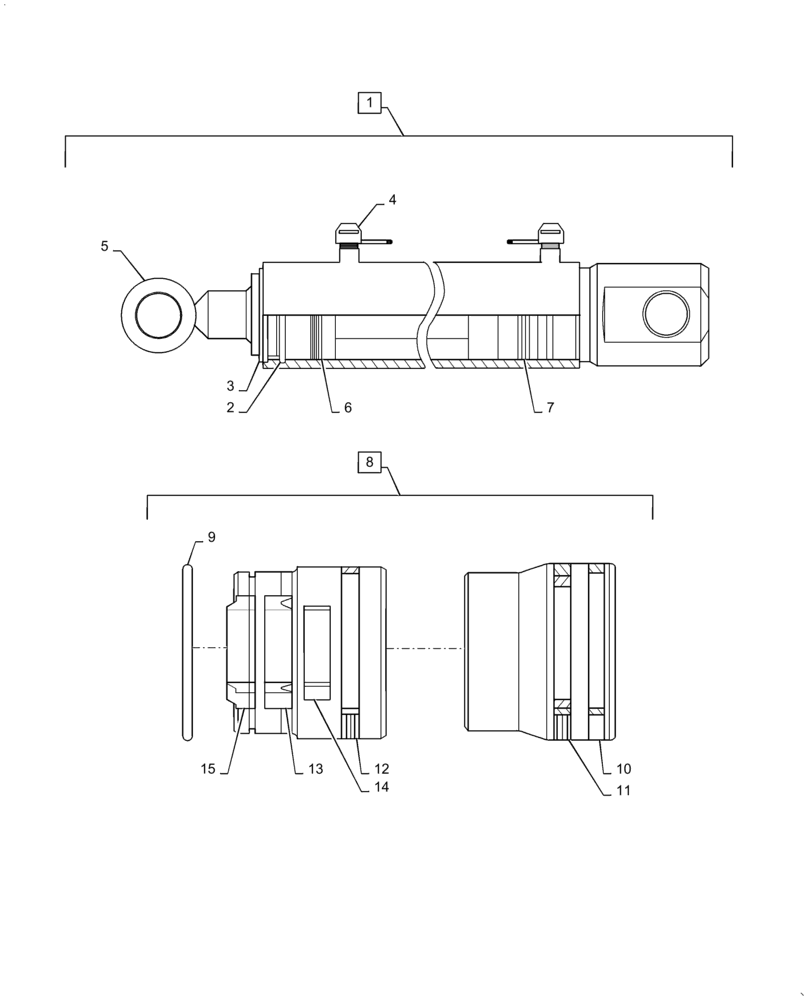

Запчасти Case IH L565 (35.640.AA[02]) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR12718010

HYDRAULIC CYLINDER

Cylinder, Incl 2 - 15

1шт.

2

LDR5016668

RING

Retaining

1шт.

3

LDR5016608

RING

Retaining

1шт.

4

LDR5028083

PLUG

2шт.

5

LDR12715513

ROD

Piston

1шт.

6

LDR12716111

GLAND,Bearing

1шт.

7

LDR12716612

PISTON

1шт.

8

LDR5034115

SEAL KIT

Incl 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, 3mm ID x 58mm OD, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Guide Ring, 5mm ID x 65mm OD , Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Piston Seal, 6mm ID x 49mm OD, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Cover Seal, 6mm ID x 59mm OD, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, 10mm ID x 43mm OD , Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Guide Ring, 9mm ID x 36mm OD, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper, Incl in 1

1шт.
