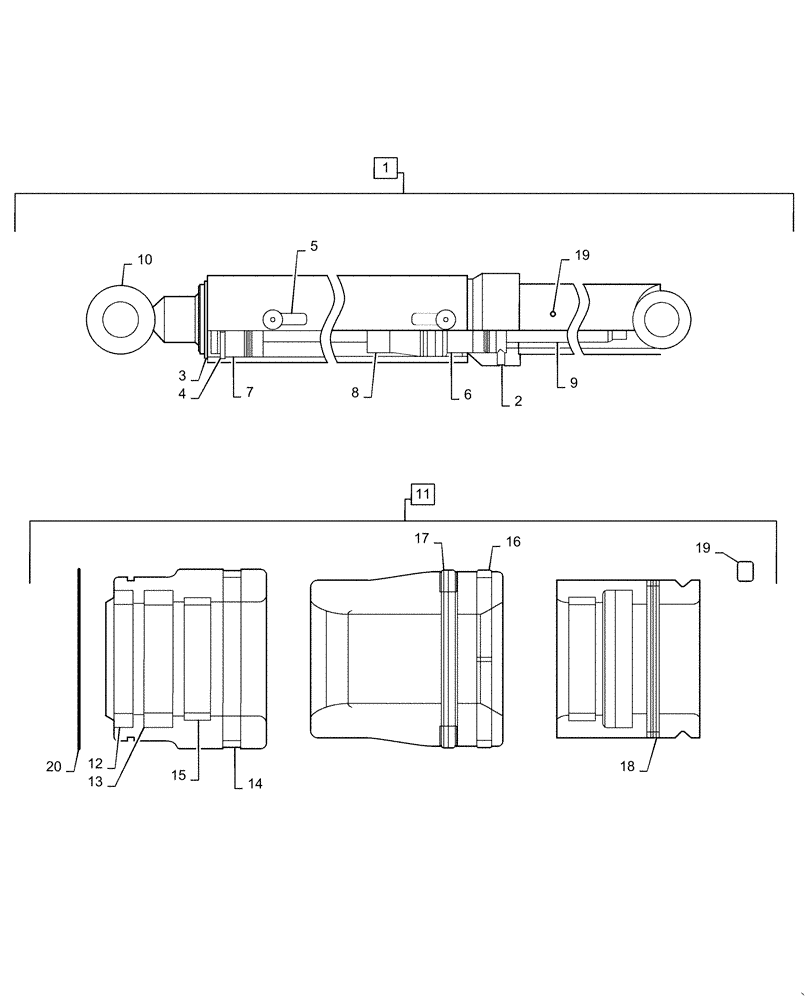

Запчасти Case IH L565 (35.640.AA[02]) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR12718110

HYDRAULIC CYLINDER

Cylinder, Incl 2 - 20

1шт.

2

LDR5006021

SCREW

Stop, M6 x 12mm L

2шт.

3

LDR5016608

RING

Retaining

1шт.

4

LDR5016668

RING

Retaining

1шт.

5

LDR5028083

PLUG

1шт.

6

LDR12700017

GUIDE

1шт.

7

LDR12706511

BEARING

1шт.

8

LDR12706512

PISTON

1шт.

9

LDR12714716

ROD

Rear

1шт.

10

LDR12715813

ROD

Piston

1шт.

11

LDR5033711

SEAL KIT

Incl 12 - 20

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, 10mm ID x 40mm OD, Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

Cover Seal, 59mm ID x 65mm OD, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Guide Ring, 9mm ID x 40mm OD, Incl in 1

2шт.

16

NSS

NOT SOLD SEPARAT

Guide Ring, 5mm ID x 65mm OD, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Piston Seal, 49mm ID x 65mm OD, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Cover Seal, 4mm ID x 53mm OD, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, 3mm ID x 53mm OD, Incl in 1

1шт.
