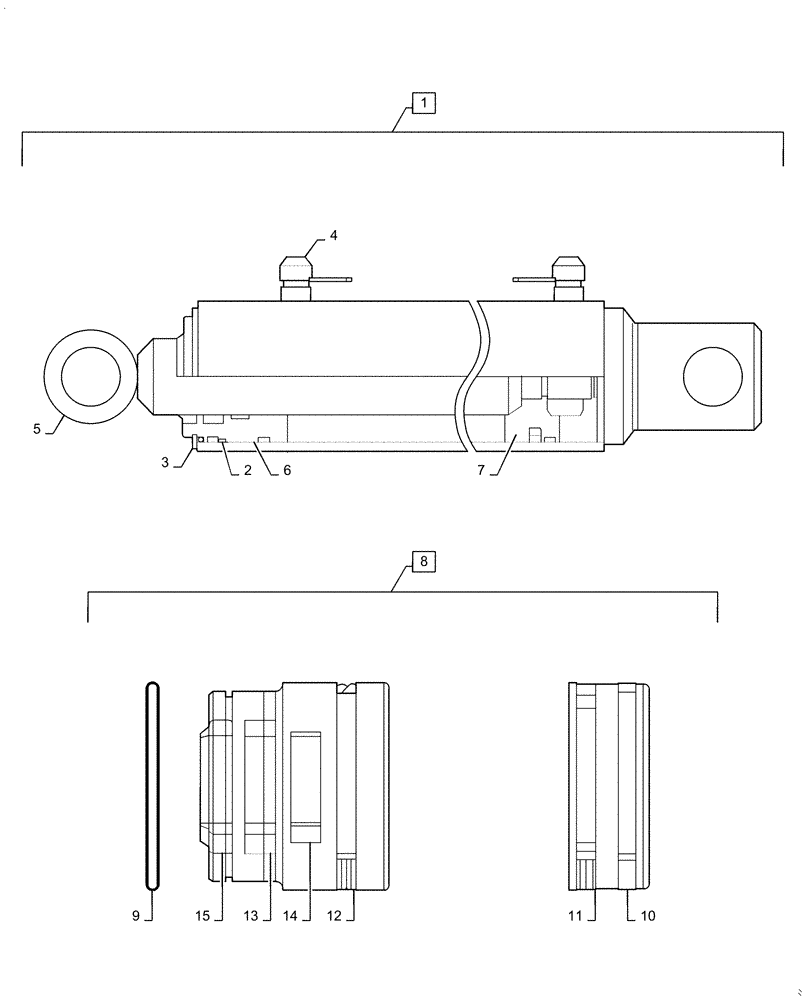

Запчасти Case IH L565 (35.640.AA[01]) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR12727110

HYDRAULIC CYLINDER

Cylinder, Incl 2 - 15

1шт.

2

LDR5016668

RING

Retaining

1шт.

3

LDR5016608

RING

Retaining

1шт.

4

LDR5028083

PLUG

2шт.

5

LDR12727013

PISTON ROD

1шт.

6

LDR12716111

GLAND,Bearing

1шт.

7

LDR12706712

PISTON

1шт.

8

LDR5034115

SEAL KIT

Incl 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, 3mm ID x 53mm OD, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Guide Ring, 65mm ID x 5mm OD, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Piston Seal, 49mm ID x 65mm OD x 5mm Thk, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Cover Seal, 59mm ID x 65mm OD x 2mm Thk, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, 43mm ID x 31mm OD x 10mm Thk, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Guide Ring, 9.6mm ID x 35mm OD, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper, Incl in 1

1шт.
