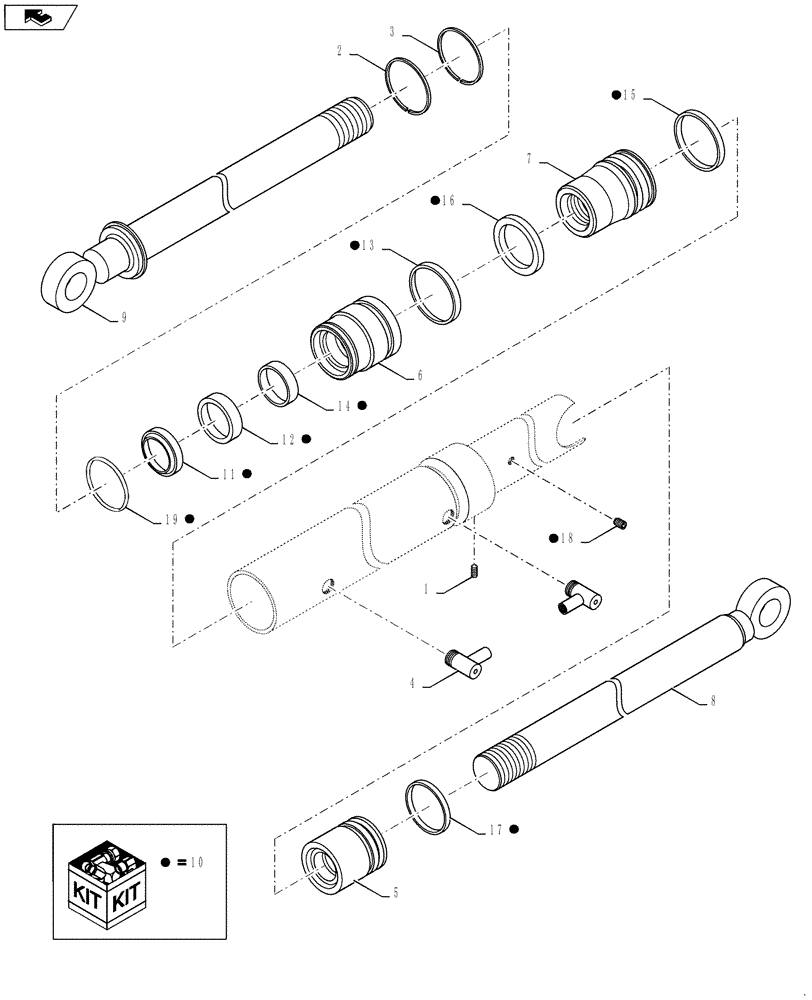

Запчасти Case IH L560 (35.100.03[03]) - CYLINDER LDR12718310 (35) - HYDRAULIC SYSTEMS

1

LDR5005983

SCREW

S6SS 6 x 16

2шт.

2

LDR5016621

RING

Retaining

1шт.

3

LDR5016669

RING

Retaining

1шт.

4

NSS

NOT SOLD SEPARAT

SHIPPING PLUG

1шт.

5

LDR12700017

GUIDE

1шт.

6

LDR12707011

BEARING

1шт.

7

LDR12707012

PISTON

1шт.

8

LDR12714715

ROD

Rear

1шт.

9

LDR12714913

ROD

Piston

1шт.

10

LDR5033712

SEAL KIT

Inc. 11-19

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER, 40/50 x 7/10

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL, 40/50 x 10

2шт.

13

NSS

NOT SOLD SEPARAT

COVER SEAL, 70 x 64.6 x 6.2

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE RING, 40/45 x 9.7

2шт.

15

NSS

NOT SOLD SEPARAT

GUIDE RING, 70/65 x 5.5

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON SEAL, 70/54.5 x 6.3

1шт.

17

NSS

NOT SOLD SEPARAT

COVER SEAL, 52.4 x 58 x 3.6 x 2.8

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING, 63.09 x 3.53

1шт.
