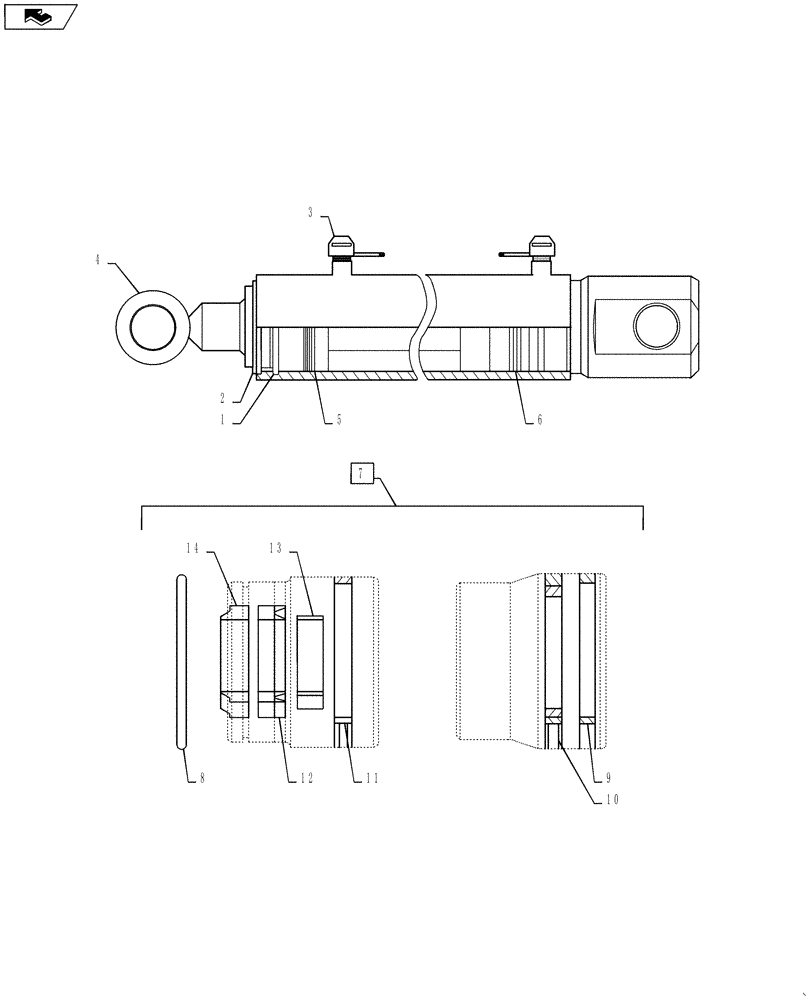

Запчасти Case IH L560 (35.100.02[03]) - CYLINDER LDR12717510 (35) - HYDRAULIC SYSTEMS

1

LDR5017000

RING

Retaining

1шт.

2

LDR5017001

RING

Retaining

1шт.

3

NSS

NOT SOLD SEPARAT

SHIPPING PLUG

2шт.

4

LDR12715313

ROD

Piston

1шт.

5

LDR12716011

BEARING

1шт.

6

LDR12716012

PISTON

1шт.

7

LDR5034114

SEAL KIT

Inc. 8-14

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING, 55.56 x 3.53

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE RING, 60 x 55 x 5.5

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON SEAL, 60.6 x 50 x 4

1шт.

11

NSS

NOT SOLD SEPARAT

COVER SEAL, 60 x 53.6 x 5.6

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL, 43 x 31 x 10

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE RING, 35 x 9.6

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER, 42 x 31 x 10

1шт.
