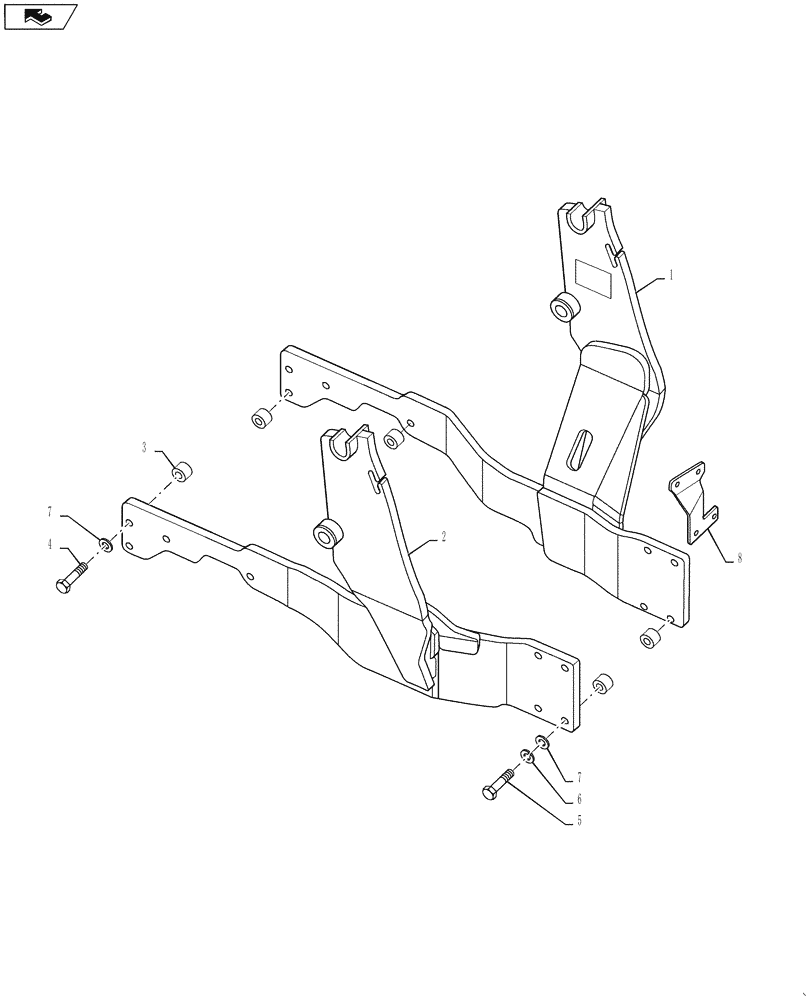

Запчасти Case IH L560 (82.100.02) - SUBFRAME SET, JX55 - 70 - 730875006 (82) - FRONT LOADER & BUCKET

1

LDR10413281

FRAME

Sub, Left Hand

1шт.

2

LDR10413282

FRAME

Sub, Right Hand

1шт.

3

LDR9010011

SPACER

Sleeve

8шт.

4

LDR5002756

BOLT

M6S M16 x 1.5 x 80 (8.8)

8шт.

5

LDR5002758

SCREW,Hex, M16 x 1.5 x 100mm, Cl 8.8

M6S M16 x 1.5 x 100 (8.8)

2шт.

6

LDR5013411

SPRING WASHER

FBB 16.2 x 27.4 x 3.5

2шт.

7

LDR5013105

WASHER

BRB 30 x 17 x 3

10шт.

8

LDR10386870

BRACKET

Support

1шт.
