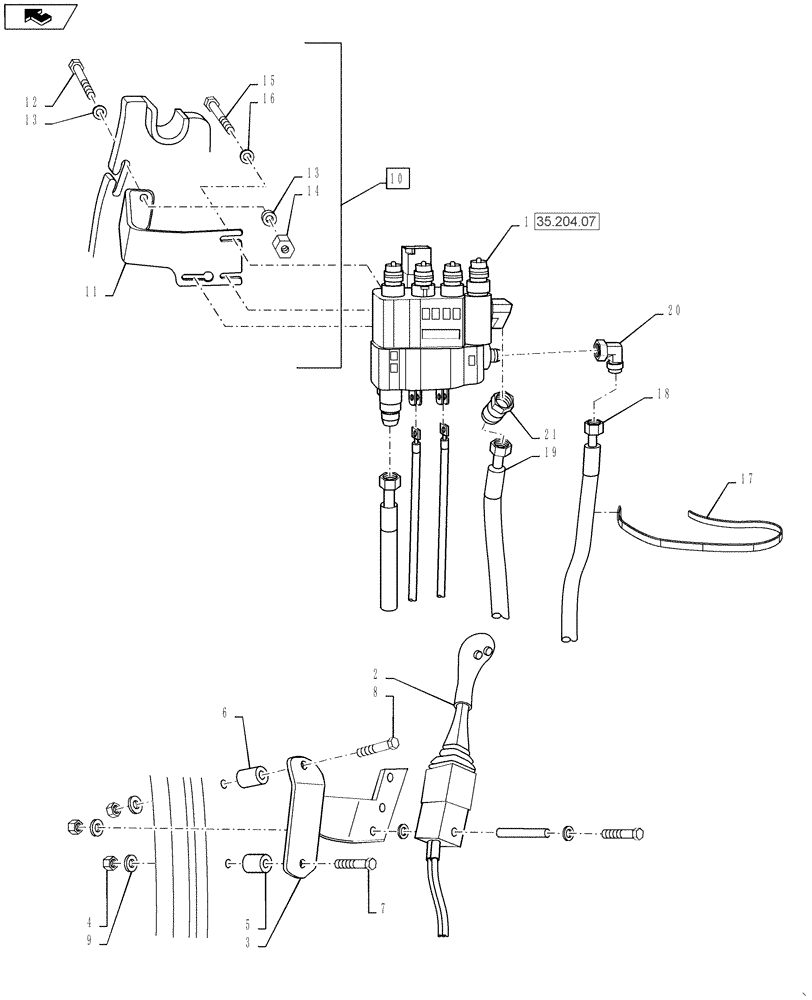

Запчасти Case IH L560 (35.204.05) - HYDRAULIC KIT, JX, FARMALL 90, 95 - 730861006 (35) - HYDRAULIC SYSTEMS

1

LDR10550415

CONTROL VALVE

1шт.

2

LDR5021071

JOYSTICK

L=1800

1шт.

3

LDR10358866

SUPPORT

Joystick

1шт.

4

LDR5011554

NUT,M10

Loc-King M10

2шт.

5

LDR10358869

SPACER

Sleeve

1шт.

6

LDR10358870

SPACER

Sleeve

1шт.

7

LDR5002082

SCREW

M6S M10 x 70 (8.8)

1шт.

8

LDR5002092

SCREW

M6S M10 x 80 (8.8)

1шт.

9

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

BRB 10.5 x 22 x 2

2шт.

10

LDR10412169

SERVICE KIT

Inc. 11-16

1шт.

11

LDR10412014

BRACKET

1шт.

12

LDR5002107

SCREW

M6S M12 x 55 (8.8)

2шт.

13

LDR5013104

WASHER

BRB 13.5 x 24 x 2

4шт.

14

LDR5011555

NUT,M12

M12

2шт.

15

LDR5002051

SCREW,M6S

M6S 8 x 20

3шт.

16

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4 x 16 x 1.5

3шт.

17

LDR5033606

CABLE TIE

6шт.

18

LDR9031845

FLEXIBLE HOSE

7/8" JIC-1" ORFS 90 JIC x 2300

1шт.

19

LDR9031846

FLEXIBLE HOSE

7/8" JIC-1" ORFS 90 JIC x 2200

2шт.

20

LDR5027422

ELBOW

7/8" UNF JIC-7/8" UNF JIC

1шт.

21

LDR5027823

END FITTING

7/8" UNF JIC-7/8" UNF JIC

1шт.
