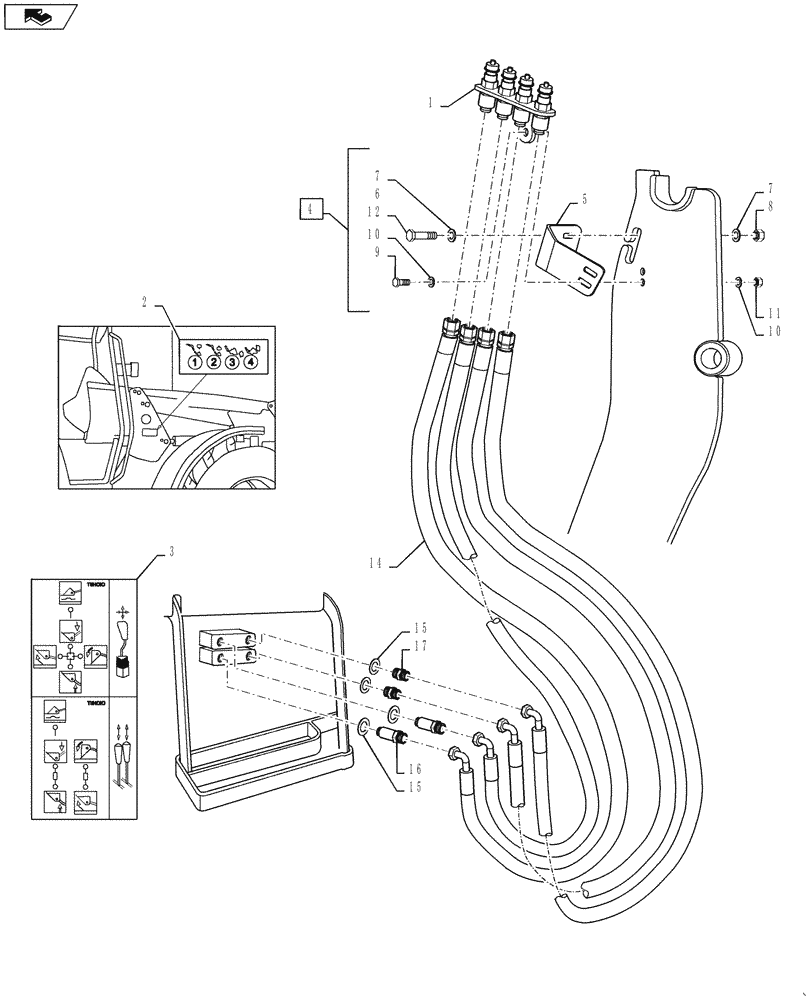

Запчасти Case IH L560 (35.204.03) - HYDRAULIC HOSE SET, FARMALL C (35) - HYDRAULIC SYSTEMS

1

LDR5034186

BRACKET

Assy, Includes Bracket, Quick Couplings & Caps

1шт.

2

LDR11133365

DECAL

Joystick Control

1шт.

3

LDR11134370

DECAL

Joystick Control

1шт.

4

LDR10412788

BRACKET

Inc. 5-12

1шт.

5

LDR10412332

BRACKET

1шт.

6

LDR5002107

SCREW

M6S M12 x 55 (8.8)

2шт.

7

LDR5013104

WASHER

BRB 13.5 x 24 x 2

4шт.

8

LDR5011555

NUT,M12

M12

2шт.

9

LDR5002051

SCREW,M6S

M6S 8 x 20

2шт.

10

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4 x 16 x 1.5

2шт.

11

LDR5011053

NUT

M6 M8

2шт.

12

LDR5002105

SCREW

M6S M12 x 45 (8.8)

2шт.

13

LDR5033606

CABLE TIE

(Not Shown)

4шт.

14

LDR9032039

FLEXIBLE HOSE

4шт.

15

LDR20720130

WASHER

Tredo 118

4шт.

16

LDR11120581

ADAPTER

7/8" UNF JIC-M18 x 1.5

2шт.

17

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

7/8" UNF JIC-M18 x 1.5

2шт.
