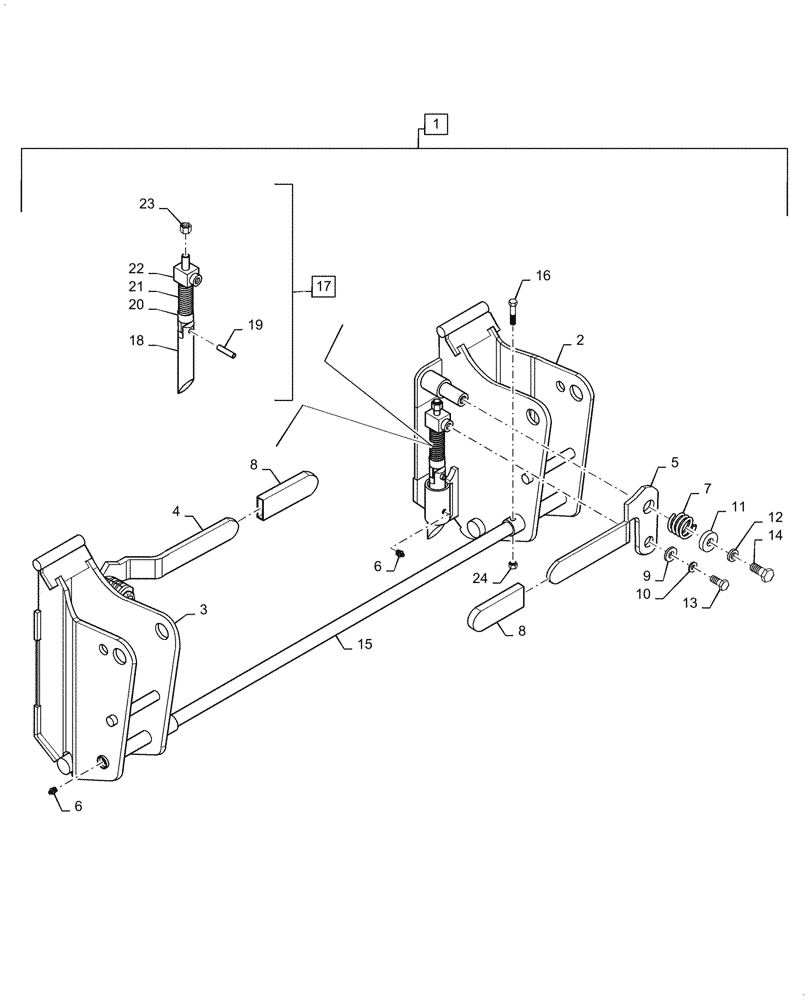

Запчасти Case IH L555 (82.100.AH[02]) - MANUAL COUPLER - DUAL HANDLE (AFTER NOV 28 2016) (82) - FRONT LOADER & BUCKET

1

LDR60014453

Assy, Incl 2 - 24

CARRIER

1шт.

2

LDR60014437

Tool, RH

CARRIER

1шт.

3

LDR60013571

Tool, LH

CARRIER

1шт.

4

LDR5221533

HANDLE

LH

1шт.

5

LDR5221534

HANDLE

RH

1шт.

6

LDR5023005

LUBE NIPPLE

Grease Fitting

4шт.

7

LDR5221539

SPRING

2шт.

8

LDR5022144

HANDLE

Cover

2шт.

9

LDR5013916

WASHER

4mm ID x 24mm OD

2шт.

10

LDR5013404

WASHER

1mm ID x 14mm OD

2шт.

11

LDR5013924

WASHER

6mm ID x 16mm OD

2шт.

12

LDR5013408

WASHER

2mm ID x 21mm OD

2шт.

13

LDR5002051

SCREW,M6S

2шт.

14

LDR5002103

SCREW,M12 x 35mm L

2шт.

15

LDR60014460

SHAFT

1шт.

16

LDR5002108

M12 x 60mm L

SCREW

2шт.

17

LDR60009527

PIN

2шт.

18

LDR60009534

PIN

1шт.

19

LDR5016996

PIN

1шт.

20

LDR60009533

ROD

1шт.

21

LDR5221538

SPRING

1шт.

22

LDR60009694

LUG

1шт.

23

LDR5011554

NUT,M10

1шт.

24

LDR5011555

NUT,M12

2шт.
