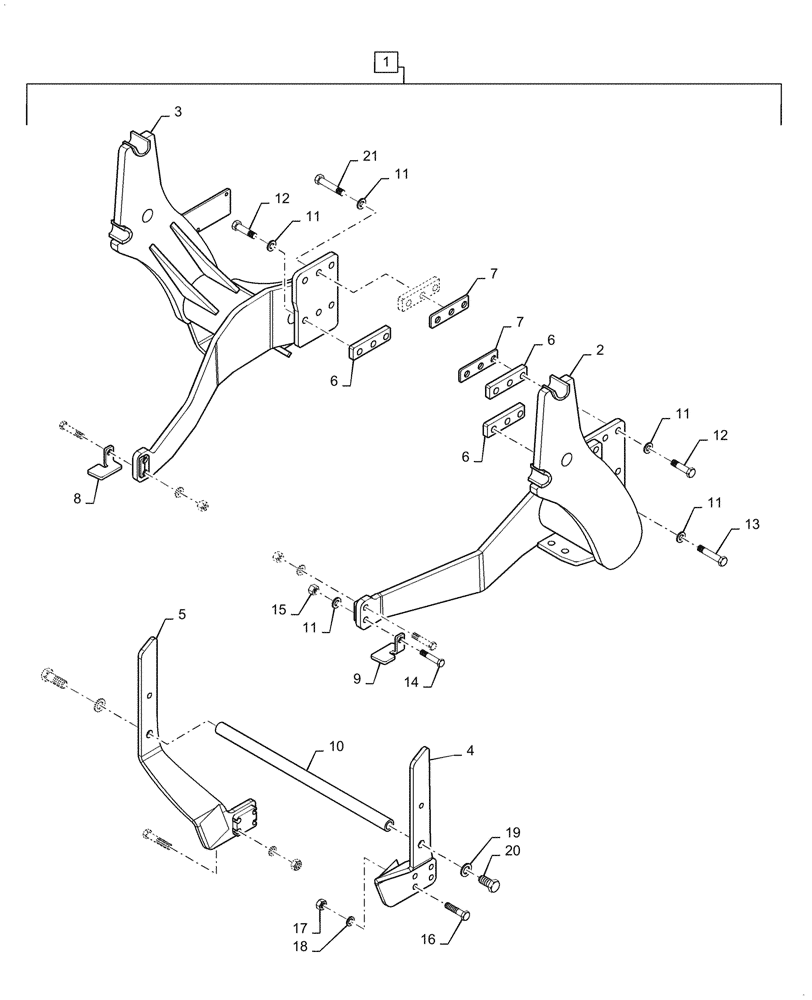

Запчасти Case IH L555 (39.100.020) - VAR - 713710006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 21, Order Through Wholegoods 713710006

1шт.

2

NSS

NOT SOLD SEPARAT

Subframe, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Subframe, RH, Incl in 1

1шт.

4

LDR60004588

GUARD

Grille, LH

1шт.

5

LDR60004589

GUARD

Grille, RH

1шт.

6

LDR10391558

SPACER

Plate, 15mm L

1шт.

7

LDR10391557

SPACER

Plate, 6mm L

1шт.

8

LDR10391851

STOP

Front Axle

4шт.

4WD Only

1шт.

9

LDR10391852

STOP

Front Axle

4шт.

4WD Only

1шт.

10

LDR10418909

TIE-ROD

Cross Bar

1шт.

11

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

16шт.

12

LDR5002757

SCREW

M16 x 1.5 x 60mm L, Cl 8.8

7шт.

13

LDR5002756

BOLT

M16 x 1.5 x 80mm L, Cl 8.8

2шт.

14

LDR5002158

SCREW

M16 x 75mm L, Cl 8.8

4шт.

15

LDR5011557

LOCK NUT,M16

4шт.

16

LDR5002129

SCREW

M14 x 60mm L, Cl 8.8

8шт.

17

LDR5011556

NUT

M14

8шт.

18

LDR5013107

WASHER

15mm ID x 26mm OD x 2mm Thk

8шт.

19

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

8шт.

20

LDR5002202

SCREW

M20 x 40mm L, Cl 8.8

2шт.

21

LDR5002761

BOLT

M16 x 1.5 x 90mm L, Cl 8.8

3шт.
