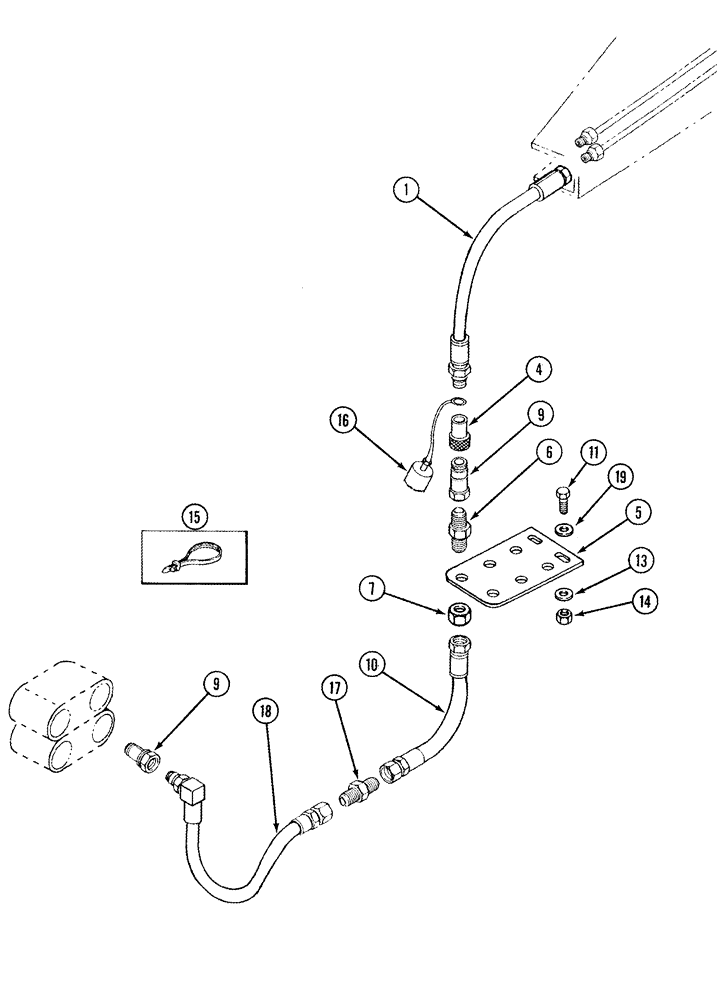

Запчасти Case IH L555 (08-04[02]) - HYDRAULICS MID MOUNT 2 FUNCTION MX80C - MX100C WITHOUT SELF LEVELING (08) - HYDRAULICS

Without Self Leveling

1шт.

1

327198A2

HOSE

1651 mm (65 in)

4шт.

4

1272400C1

COUPLING

Female

4шт.

4a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Illustrated, Used with Ref 4

4шт.

5

327223A1

PLATE

1шт.

6

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

4шт.

7

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

4шт.

9

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

8шт.

9a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Illustrated, Used with Ref 9

4шт.

10

357385A1

HOSE ASSY.

1524 mm (60 in)

4шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

2шт.

15

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" TIE

3шт.

16

333717A1

CAP

Female, Blue

1шт.

16

333719A1

CAP

Female, Yellow

1шт.

16

333721A1

CAP

Female, Red

1шт.

16

333722A1

CAP

Female, Green

1шт.

17

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

4шт.

18

357390A1

HOSE ASSY.

1676 mm (66 in)

4шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.
