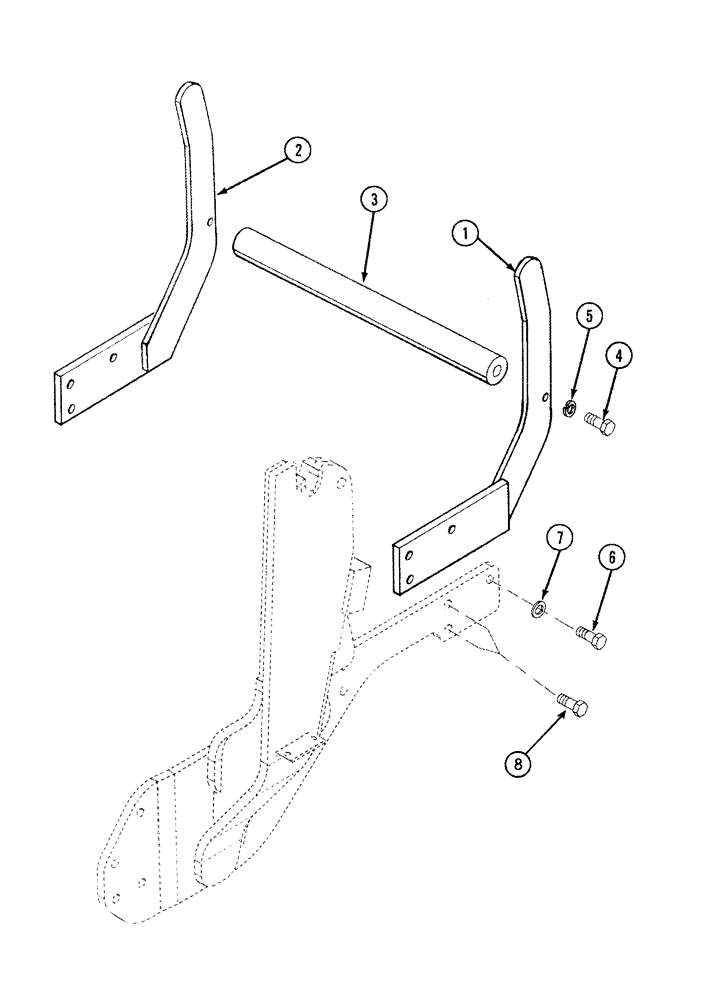

Запчасти Case IH L555 (09-11) - PROTECTIVE ASSY GRILLE (09) - CHASSIS/ATTACHMENTS

1

292877A1

BRACKET

C/CX70 - C/CX100 (1), Right Hand

1шт.

1

314720A1

BRACKET

MX80C - MX100C (1), Right Hand

1шт.

2

296173A1

BRACKET

C/CX70 - C/CX100 (1), Left Hand

1шт.

2

345811A1

BRACKET

MX80C - MX100C (1), Left Hand

1шт.

3

345812A1

BAR

1шт.

4

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

5

892-11012

LOCK WASHER,M12

2шт.

6

628-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

8

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.
