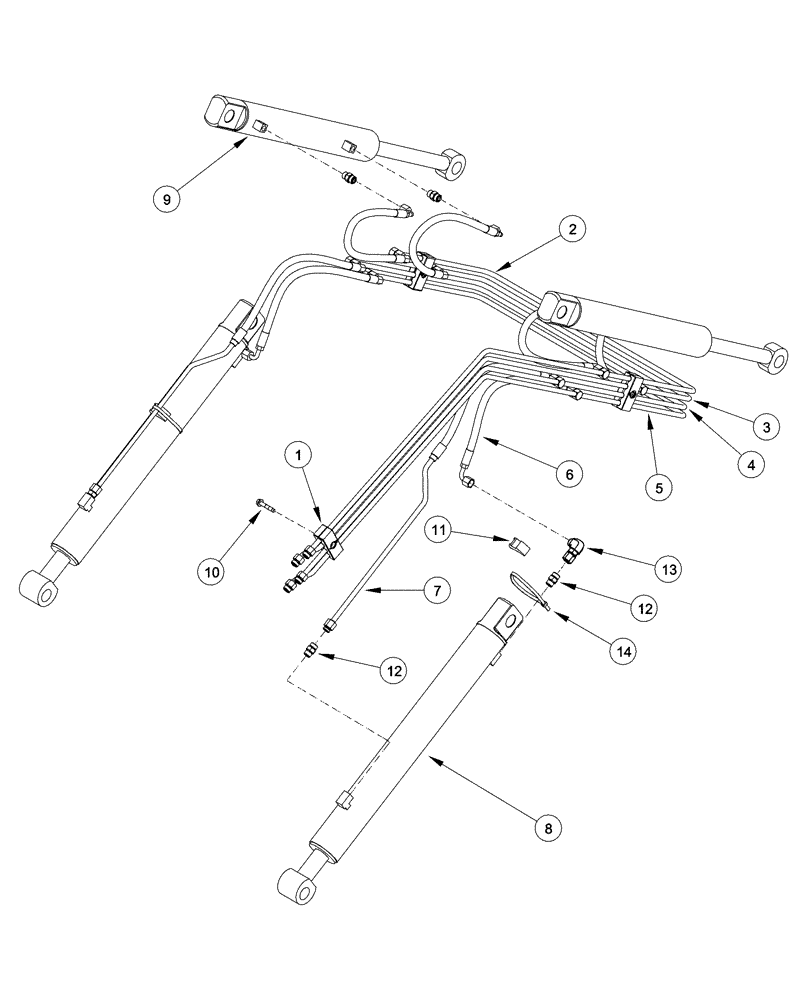

Запчасти Case IH L555 (08-01) - HYDRAULICS LOADER FRAME (08) - HYDRAULICS

1

324067A1

BRACKET

6шт.

2

324913A4

HYD TUBE

1шт.

3

324914A4

HYD TUBE

1шт.

4

324915A4

HYD TUBE

1шт.

5

324916A4

HYD TUBE

1шт.

6

345381A1

HOSE,9.53mm ID x 609.6mm L, SAE 100R17

610 mm (24 in)

8шт.

7

324952A2

HYD TUBE

2шт.

8

338100A2

CYLINDER

73.5 ID x 524 mm strk, L505(2), Lift, See Figure 8-25.01

1шт.

8

338102A2

CYLINDER

80 ID x 557 mm strk, L555(2), Lift, See Figure 8-25.02

1шт.

9

338101A2

CYLINDER

70 ID x 400 mm strk, L505(2), Without, Quick Attach, Bucket, See Figure 8-26.01

1шт.

9

338103A2

CYLINDER

73.5 ID x 417 mm strk, L555(2), L505(2), With, Quick Attach, Bucket, See Figure 8-26.02

1шт.

10

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

3шт.

11

D38648

BLOCK

2шт.

12

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

8шт.

13

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

2шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 711 mm (28 in)

2шт.
