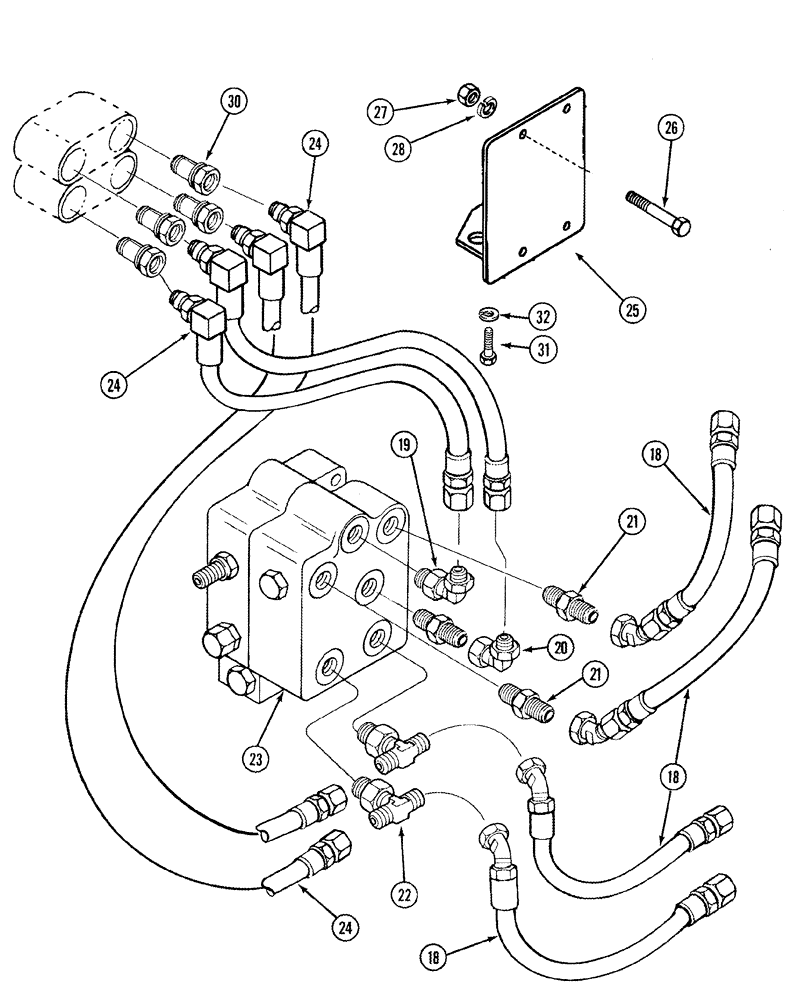

Запчасти Case IH L555 (08-32) - HYDRAULICS MID MOUNT 2 Function MX80C - MX100C With Self Leveling (08) - HYDRAULICS

18

327219A1

HOSE ASSY.

559 mm (22 in)

4шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or

1шт.

20

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

3шт.

22

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl br x fl x Or

2шт.

23

328000A2

VALVE, CONTROL

1шт.

24

357390A1

HOSE ASSY.

1676 mm (66 in)

4шт.

25

397099A1

PLATE ASSY.

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

27

425-105

NUT,5/16"-18, G5

2шт.

28

492-11031

LOCK WASHER,5/16"

2шт.

30

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

4шт.

30a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Illustrated, Used with Ref 30

1шт.

31

614-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 8.8, Full Thd

M20 x 45

2шт.

32

892-11020

LOCK WASHER,M20

2шт.
