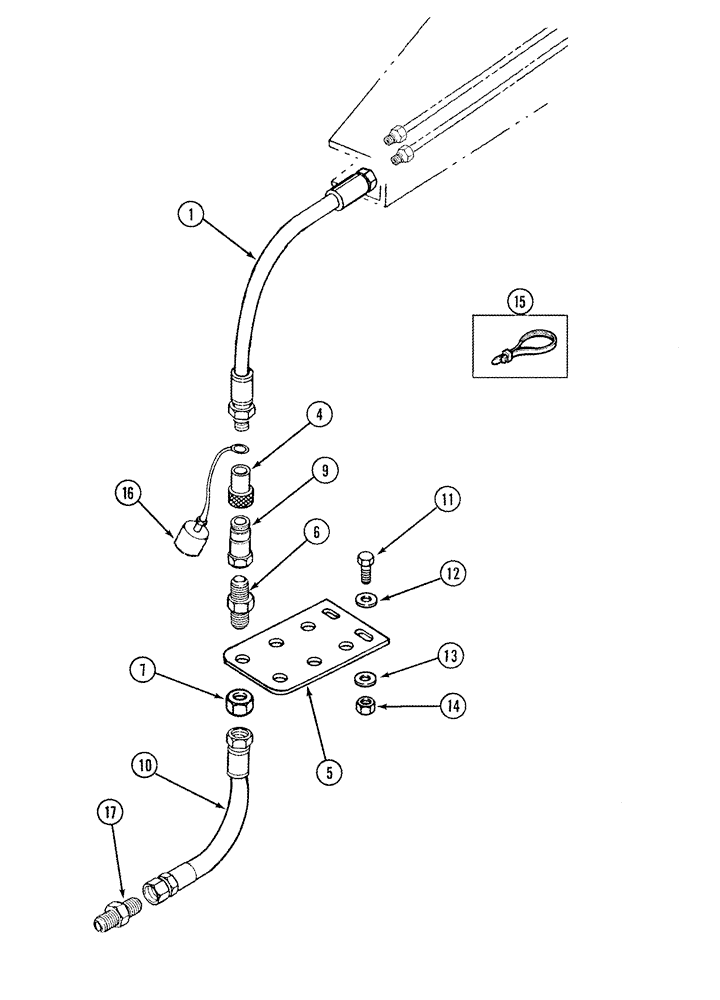

Запчасти Case IH L555 (08-27) - HYDRAULICS MID MOUNT 2 Function C70 - C100 With Self Leveling (08) - HYDRAULICS

With Self Leveling

1шт.

1

327198A2

HOSE

1651 mm (65 in)

4шт.

4

1272400C1

COUPLING

Female

4шт.

4a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Illustrated, Used with Ref 4

1шт.

5

327223A1

PLATE

1шт.

6

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

4шт.

7

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

4шт.

9

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

4шт.

9a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Illustrated, Used with Ref 9

1шт.

10

357380A1

HOSE ASSY.

1168 mm (46 in)

4шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

2шт.

15

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" TIE

3шт.

17

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

4шт.
