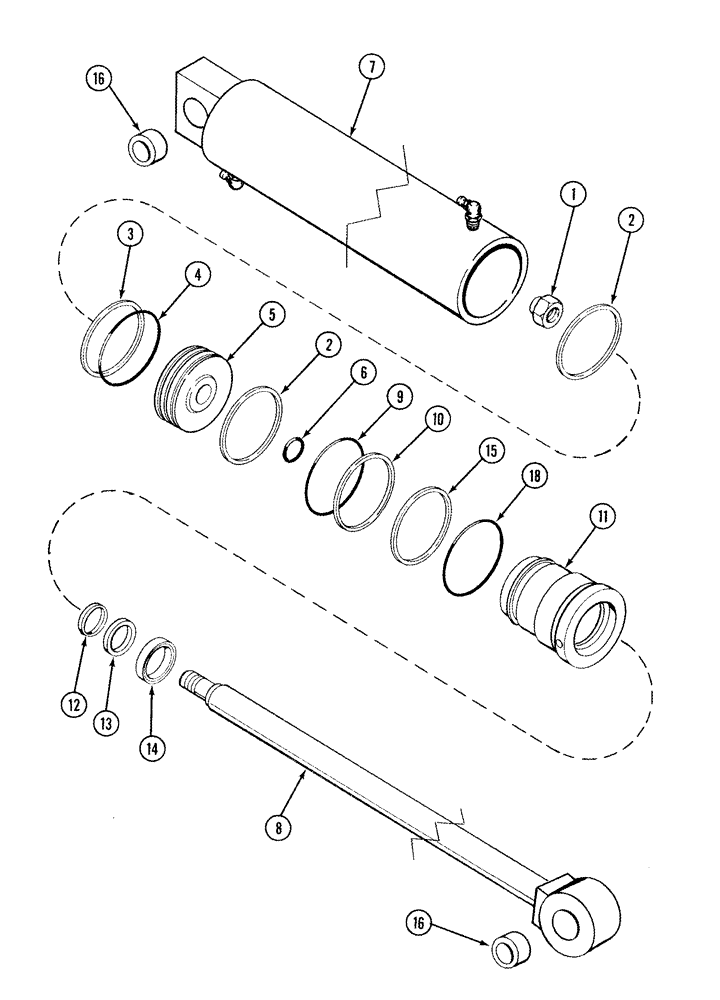

Запчасти Case IH L555 (08-25[02]) - CYLINDER ASSY LIFT L555 (08) - HYDRAULICS

80 mm (3.25 in) ID x 557 mm (22.75 in) strk

1шт.

338102A2

CYLINDER

80 ID x 557 mm strk, Consists Of 1-18

2шт.

1

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

348471A1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

1/4 x 1, Body

1шт.

8

338138A1

STEM

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

11

348462A1

HEAD

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

16

NSS

NOT SOLD SEPARAT

Bushing

4шт.

17

NSS

NOT SOLD SEPARAT

Plug

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

352543A1

SEAL KIT

Consists Of 1-4,6,9,10,12-15,18

1шт.
