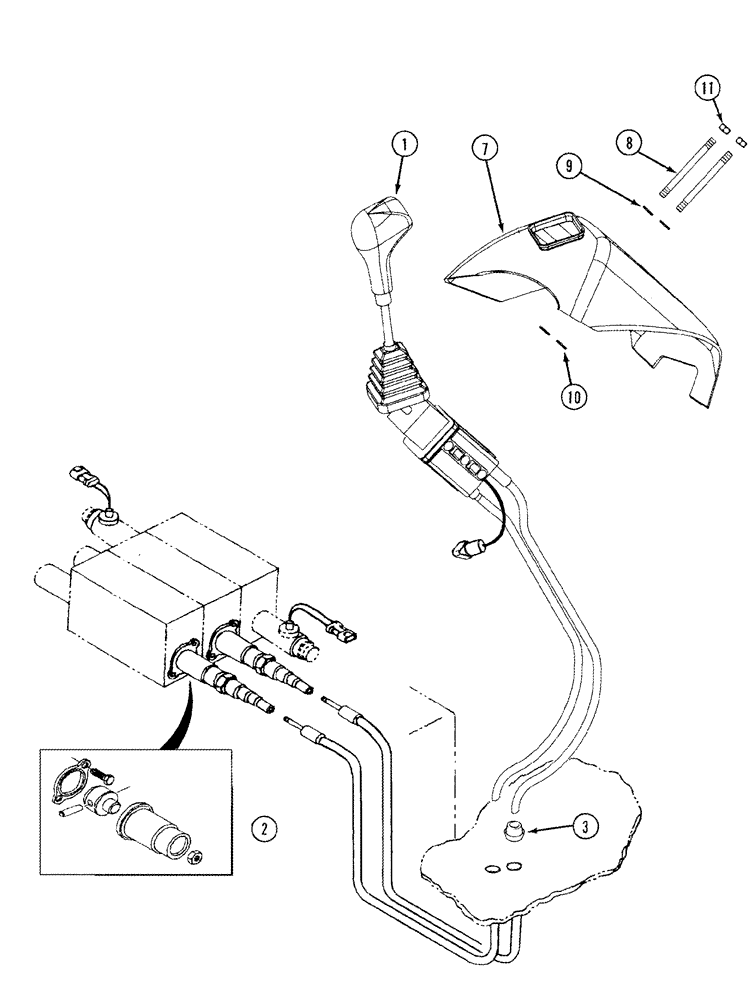

Запчасти Case IH L555 (08-18) - HYDRAULIC CONTROLS MOUNTING 3 Function CX70 - CX100 (08) - HYDRAULICS

1

REF

INSTRUCTION

Controller, See Figure 8-19

1шт.

2

252798A1

SET OF PARTS

2шт.

3

182045A1

GROMMET

2шт.

7

279785A3

COVER

For Platform Tractor, Shown

1шт.

7

257605A4

COVER

For Straddle Tractor, Not Illustrated

1шт.

8

321218A1

STUD

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
