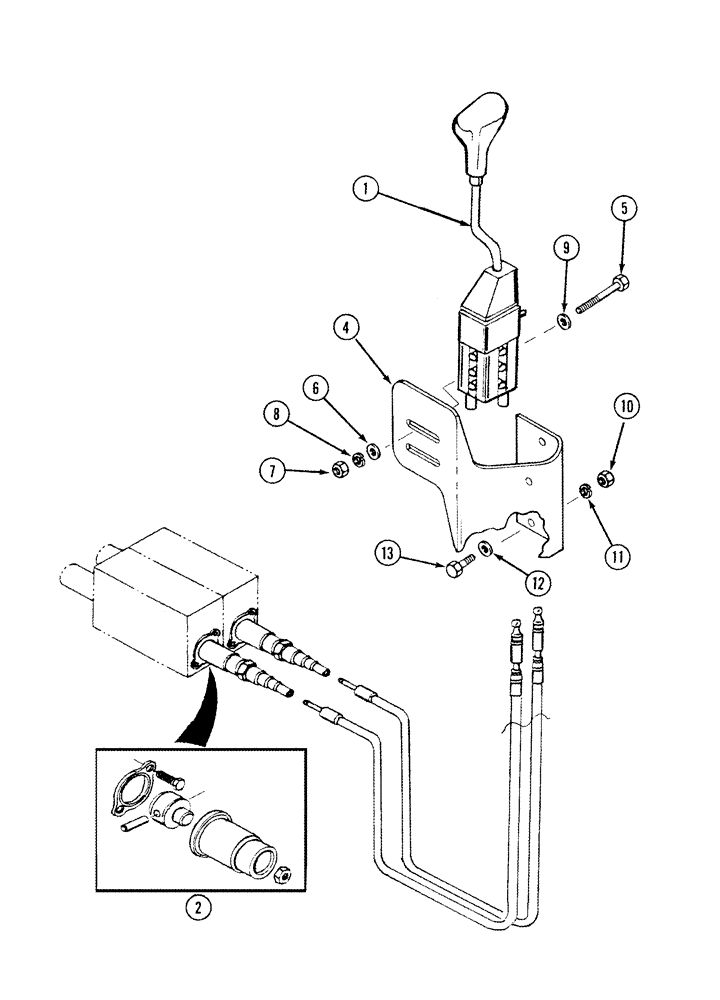

Запчасти Case IH L555 (08-16) - HYDRAULIC CONTROLS MOUNTING 2 Function C70 - C100 (08) - HYDRAULICS

1

280019A2

CONTROL

See Figure 8-17

1шт.

2

252798A1

SET OF PARTS

2шт.

3

182045A1

GROMMET

Not Illustrated

2шт.

4

357364A1

BRACKET

1шт.

5

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1/4 x 3

2шт.

6

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

4шт.

7

425-104

NUT,1/4"-20, Cl 5

2шт.

8

492-11025

LOCK WASHER,1/4"

2шт.

9

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
