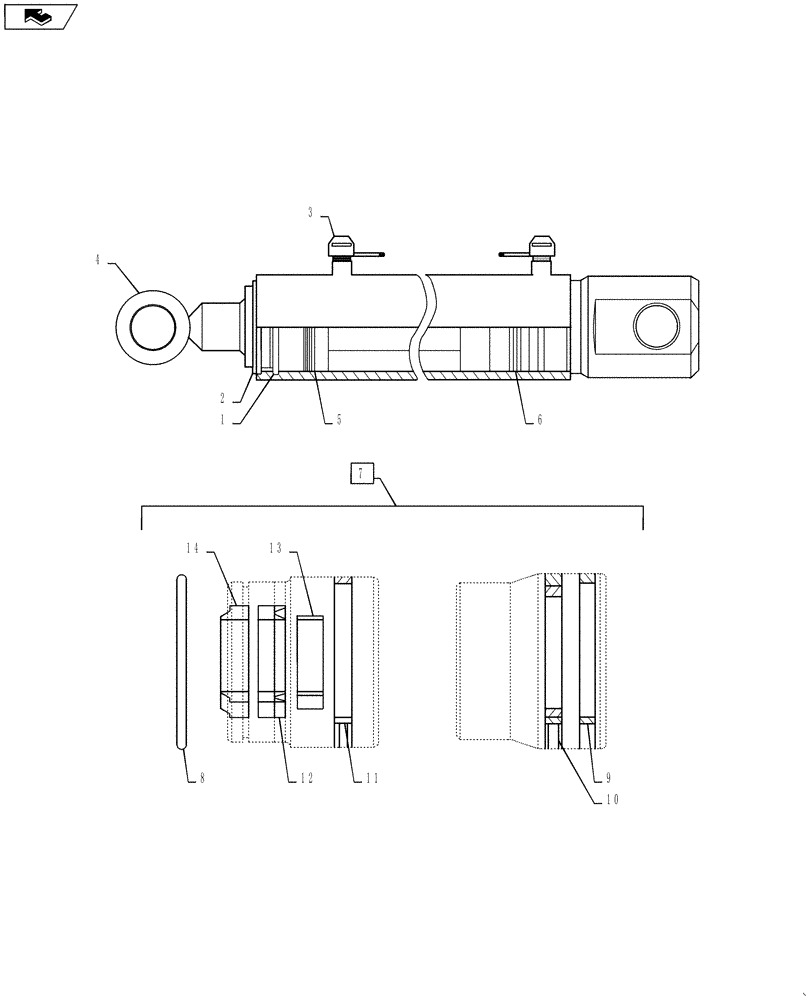

Запчасти Case IH L550 (35.100.02[02]) - CYLINDER LDR12717210 (35) - HYDRAULIC SYSTEMS

1

LDR5016668

RING

Retaining

1шт.

2

LDR5016608

RING

Retaining

1шт.

3

NSS

NOT SOLD SEPARAT

SHIPPING PLUG

2шт.

4

LDR12715113

ROD

Piston

1шт.

5

LDR12716111

GLAND,Bearing

1шт.

6

LDR12716612

PISTON

1шт.

7

LDR5034115

SEAL KIT

Inc. 8-14

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING, 58.74 x 3.53

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE RING, 65/60 x 5.5

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON SEAL, 65/49.5 x 6.3

1шт.

11

NSS

NOT SOLD SEPARAT

COVER SEAL, 65 x 59.6 x 6.2

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL, 43 x 31 x 10

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE RING, 35 x 9.6

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER, 42 x 31 x 10

1шт.
