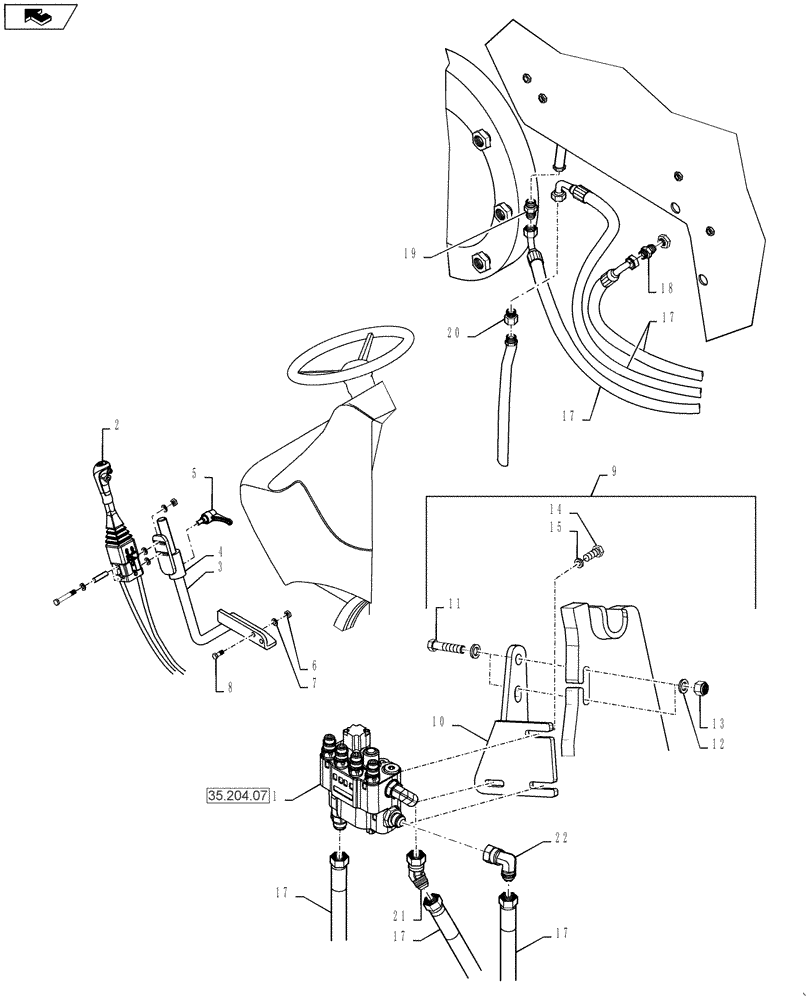

Запчасти Case IH L550 (35.204.06) - HYDRAULIC KIT, FARMALL 75N, 95N - 715431036 (35) - HYDRAULIC SYSTEMS

1

LDR10550415

CONTROL VALVE

1шт.

2

LDR313262

SERVICE KIT

Adapter Pin

1шт.

3

LDR11136094

DECAL

Joystick Control

1шт.

4

LDR5021070

JOYSTICK

1шт.

5

LDR10411707

SUPPORT

Bracket

1шт.

6

LDR335441

SUPPORT

Bracket

1шт.

7

LDR5022132

HANDLE,M8 x 16mm

1шт.

8

LDR5011053

NUT

M6 M8

2шт.

9

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4 x 16 x 1.5

2шт.

10

LDR5002051

SCREW,M6S

M6S 8 x 20

2шт.

11

LDR10412722

SERVICE KIT

Valve Bracket, Incl 12 - 17

1шт.

12

LDR10413728

BRACKET

Valve

1шт.

13

LDR5002129

SCREW

M14 x 60 (8.8)

2шт.

14

LDR5011056

NUT

M6M M14

4шт.

15

LDR5013107

WASHER

15 x 26 x 2

2шт.

16

LDR5002051

SCREW,M6S

M6S 8 x 20

3шт.

17

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4 x 16 x 1.5

3шт.

18

LDR5033606

CABLE TIE

(Not Shown)

6шт.

19

LDR9031982

FLEXIBLE HOSE

7/8" JIC x 2000

3шт.

20

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

7/8" UNF JIC - M18 x 1.5

1шт.

21

LDR5027935

END FITTING

7/8" UNF JIC - 1-1/16" UNF JIC

1шт.

22

LDR20717257

ADAPTER

7/8" UNF JIC - 1-1/16" UNF JIC

1шт.

23

LDR5027823

END FITTING

7/8" UNF JIC - 7/8" UNF JIC

1шт.

24

LDR5027422

ELBOW

7/8" UNF JIC - 7/8" UNF JIC

1шт.
