(9-18) - MATERIAL BUCKET - HEAVY DUTY, STANDARD ATTACH TYPE, QUICK ATTACH TYPE

Запчасти Case IH L550 (9-18) - MATERIAL BUCKET - HEAVY DUTY, STANDARD ATTACH TYPE, QUICK ATTACH TYPE (09) - CHASSIS/ATTACHMENTS

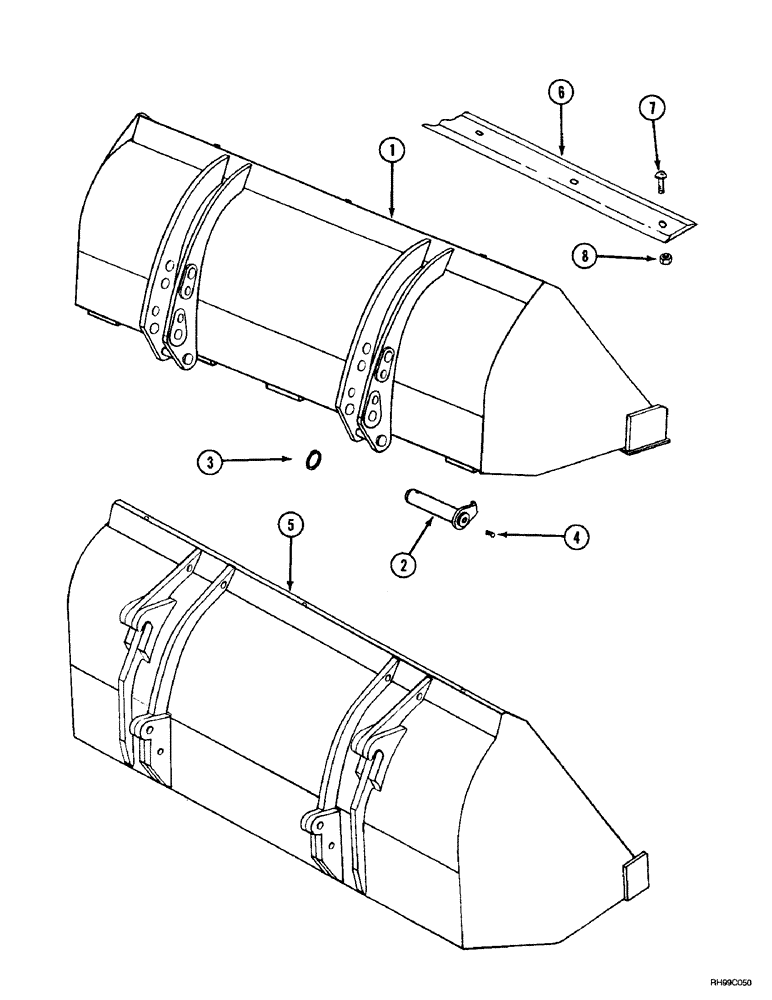

Схема запчастей Case IH L550 - (9-18) - MATERIAL BUCKET - HEAVY DUTY, STANDARD ATTACH TYPE, QUICK ATTACH TYPE (09) - CHASSIS/ATTACHMENTS
7
4
1
2
5
3
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

320821A1

BUCKET

1шт.

1

318724A2

BUCKET

1шт.

1

318731A2

BUCKET

1шт.

2

87447575

PIVOT PIN,31.75mm OD x 138mm L

1.25"

4шт.

3

103-16125

SNAP RING,#125, Ext

4шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

4шт.

5

320817A1

BUCKET

QUICK ATTACH TYPE

1шт.

5

318708A2

BUCKET

QUICK ATTACH TYPE

1шт.

6

323002A1

EDGE, CUTTING

QUICK ATTACH TYPE

1шт.

6

323003A1

EDGE, CUTTING

QUICK ATTACH TYPE

1шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

QUICK ATTACH TYPE

1шт.

8

429-1012

NUT,3/4"-10, G8

Quick attach type

1шт.
