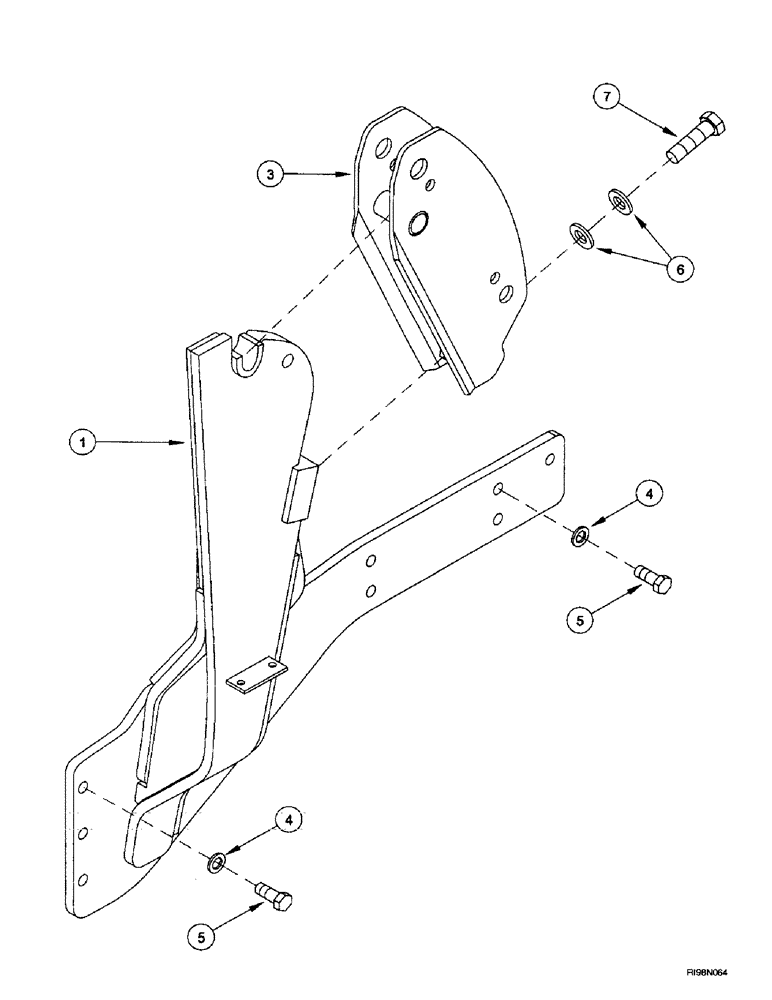

Запчасти Case IH L550 (9-12) - MOUNTING BRACKETS (MX80 - 100) (09) - CHASSIS/ATTACHMENTS

1

345635A1

BRACKET

right hand

1шт.

1

345636A1

BRACKET

left hand Not Illustrated

1шт.

3

337628A3

BOOM

BRACKET

2шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

14шт.

5

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

14шт.

6

496-31106

WASHER,1 1/16" x 2" x .219", HDN

4шт.

7

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

2шт.
