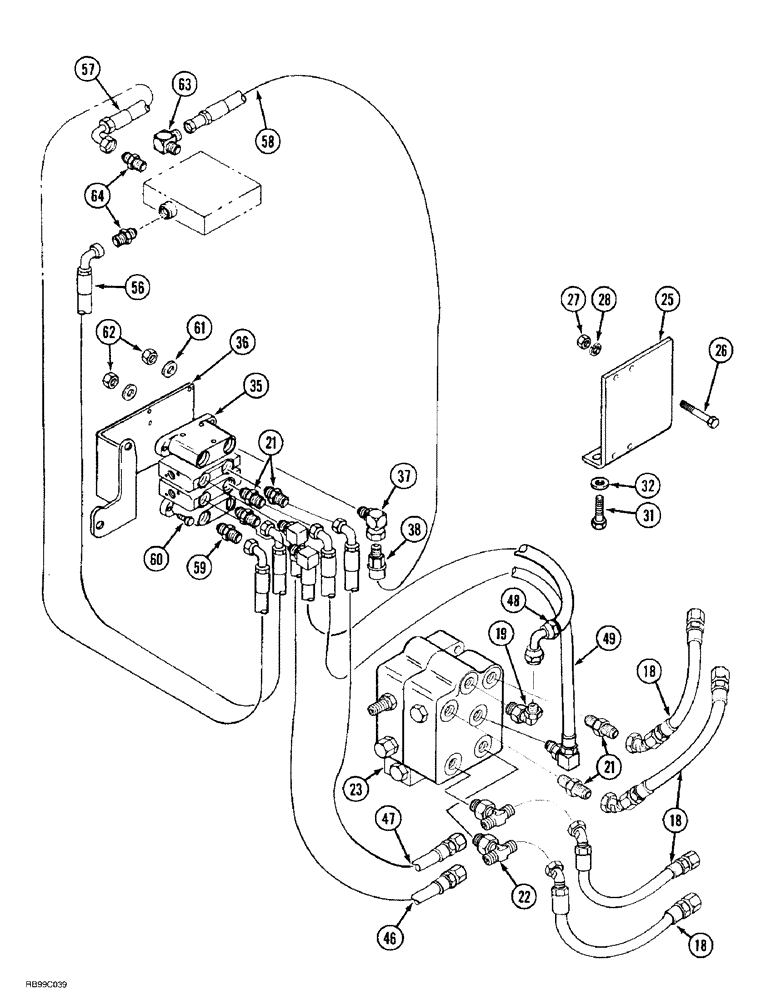

Запчасти Case IH L550 (8-104) - HYDRAULICS - EXTERNAL VALVE (2 FUNCTION MXC80 - MXC100) WITH SELF LEVELING (08) - HYDRAULICS

18

327219A1

HOSE ASSY.

4шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

20

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

adapter

4шт.

22

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

tee

2шт.

23

327226A1

VALVE

self level

1шт.

25

327225A2

SHEET

PLATE

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

27

425-105

NUT,5/16"-18, G5

2шт.

28

495-11034

WASHER,5/16", SAE

2шт.

31

614-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

2шт.

32

892-11020

LOCK WASHER,M20

2шт.

35

105080A1

VALVE

ASSY. CONTROL, See Figure(s) : 8-62

1шт.

36

246939A2

SUPPORT

1шт.

46

327217A1

HOSE ASSY.

1шт.

47

327200A1

HOSE ASSY.

1шт.

48

327218A1

HOSE ASSY.

1шт.

49

327209A1

HOSE ASSY.

1шт.

56

222637A2

HOSE ASSY.

1шт.

57

222635A1

HOSE ASSY.,15.88mm ID x 1270mm L

1шт.

58

222638A1

HOSE ASSY.

1шт.

59

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

201-103 CONNECTOR, 5/8 ORFS-ORB 5/8

1шт.

60

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

61

492-11038

LOCK WASHER,3/8"

4шт.

62

425-106

NUT,3/8"-16, Cl 5

4шт.

63

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

90

1шт.

64

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Adapter

2шт.

237-6010 S O-RING, 5/8 OD TUBE CLASS 6

1шт.

238-6016 S O-RING, 5/8 X 3/4 CLASS 6

1шт.

700-103 CONNECTOR, 16MM ORFS X M22 ORB

1шт.

637-63193 O-RING, 2.2W X 19.3 IDMM CL 6

1шт.
