Запчасти Case IH L550 (8-100) - HYDRAULICS - EXTERNAL VALVE (2 FUNCTION CX70 - CX100), W/ SELF LEVELING (08) - HYDRAULICS

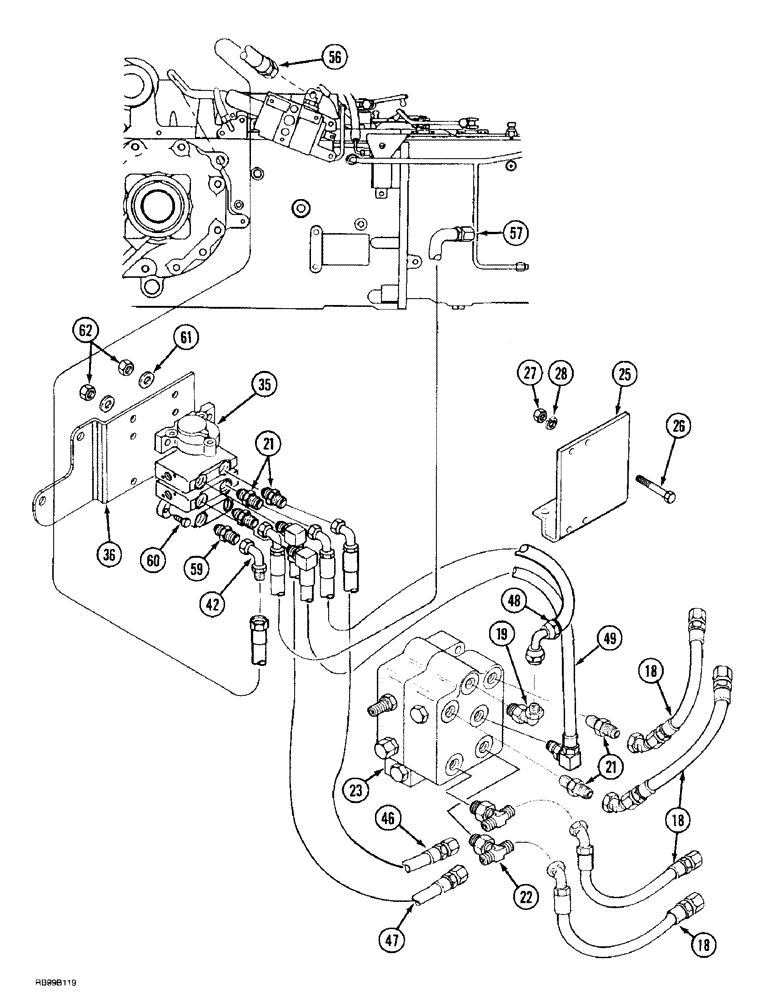

Схема запчастей Case IH L550 - (8-100) - HYDRAULICS - EXTERNAL VALVE (2 FUNCTION CX70 - CX100), W/ SELF LEVELING (08) - HYDRAULICS
19
18
35
26
22
61
28
18
48
18
49
46
36
27
59
60
23
56
57
42
21
25
62
21
47

Артикул

Название

Примечание

Количество

18

327219A1

HOSE ASSY.

4шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

adapter

3шт.

22

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

tee

2шт.

23

328000A1

VALVE

self level

1шт.

25

327225A2

SHEET

PLATE

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

27

425-105

NUT,5/16"-18, G5

2шт.

28

492-11031

LOCK WASHER,5/16"

2шт.

35

REF

INSTRUCTION

VALVE ASSY. CONTROL, See Figure(s) : 8-56

1шт.

36

252390A2

SHEET

BRACKET

1шт.

37

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

connector

1шт.

38

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

3/8 ID x 1

4шт.

42

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

46

327217A1

HOSE ASSY.

1шт.

47

327200A1

HOSE ASSY.

1шт.

48

327218A1

HOSE ASSY.

1шт.

49

327209A1

HOSE ASSY.

1шт.

56

247030A1

HOSE

supply

1шт.

57

357370A1

HOSE ASSY.

return

1шт.

59

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

201-103 CONNECTOR, 5/8 ORFS-ORB 5/8

1шт.

60

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

61

492-11038

LOCK WASHER,3/8"

4шт.

62

425-106

NUT,3/8"-16, Cl 5

4шт.

237-6010 S O-RING, 5/8 OD TUBE CLASS 6

1шт.

238-6016 S O-RING, 5/8 X 3/4 CLASS 6

1шт.

700-103 CONNECTOR, 16MM ORFS X M22 ORB

1шт.

637-63193 O-RING, 2.2W X 19.3 IDMM CL 6

1шт.

Выбрано товаров: 29
